Highly Mobile Drinking Water Treatment: Adapted To The Needs Of Relief Organizations
Published on by Water Network Research, Official research team of The Water Network in Non Profit

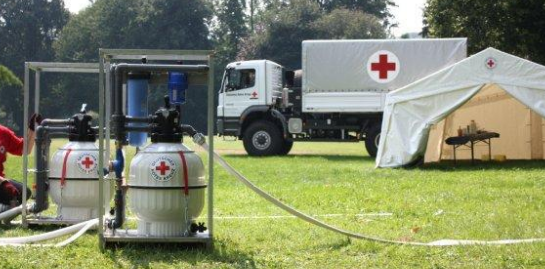

The water treatment company Berkefeld presented its type TWA 4 light mobile water treatment plant. The plant produces four cubic metres of drinking water per hour and can supply up to 10,000 refugees. It fulfils the special requirements of aid organisations and stands out for its easy and safe handling in setting up, operation and transport, as well as its reliable process technology. It is the newest system of whole range of proven mobile solutions for drinking water treatment, made by Berkefeld, part of the Veolia Water Technology Division.
The TWA 4 light was designed on the basis of the experiences of drinking water experts in aid organizations, and operational experiences with other mobile plant types, to meet the special demands of operations in disaster areas. The system combines a number of process steps which, coordinated with each other, turn most sweet surface water into drinking water without problems. As the first step behind the raw water delivery, the system provides for an inline coagulation section which enables water production in a very short time. After a sand filtration there follows an activated carbon filtration to remove residual pollutants. A subsequent deposit chlorination prevents a renewed contamination of the drinking water. The system is completed by storage for about 10,000 litres of clean water and distribution via two receiving stations with self-closing taps. Because the entire plant is operated by diesel pumps there is no need for any electricity supply. By utilizing natural slopes, the energy input for the plant can be reduced even further. The packed plant is transported on only two Europe palettes. The TWA 4 light is also easy to bring to the operating site with every airliner and also by land routes, so it is highly mobile and does not depend on additional transhipment equipment.
