New PE Piping System for Water Treatment Applications
Published on by Water Network Research, Official research team of The Water Network in Business

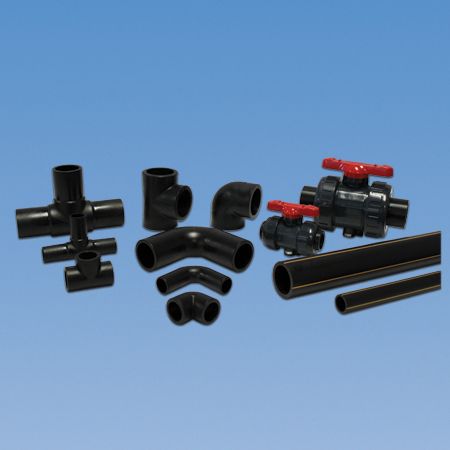

Asahi/America’s Chem Proline® Advanced PE Piping System for Water Treatment
Made from a specially formulated polyethylene (PE) resin, Asahi/America’s Chem Proline® Advanced PE piping system is designed to handle the most aggressive chemical applications, and is NSF 61-G certified. A single wall piping system ideally suited for use in water treatment applications, Chem Proline® is a complete system that includes pipe, fittings, valves and accessories.
Asahi/America’s Chem Proline® is UV resistant, can be installed above or below ground, and is thermally fused using butt, socket or electrofusion joining methods, which eliminates leaks paths at the joints. Its superior properties make it the only polyolefin material able to handle certain chlorinated services like sodium hypochlorite, sodium hydroxide, caustic soda and low centration acids.
Chem Proline’s® pH capability ranges from 1 to 14, with pressures up to 150 psi and temperatures up to 140oF. One-half-inch through 12-inch is available in stock, with sizes available up to 98-inches. Chem Proline® Advanced PE is now also available in 50-meter and 100-meter coils. Current available sizes are three-quarter-inch (SDR7) and one-inch (SDR11). The coils eliminate the labor to weld multiple straight lengths together for long chemical feed lines.
Asahi/America offers a fleet of welding equipment for sale or rent, as well as weld training and onsite tool set-up.
Source: ThomasNet
