Old Trawler Harvests Wave Power Instead of Fish

Norway's Kvernevik Engineering AS Using Old Trawler to Refine Wave Power Energy Technology for Use on Sea Going Vessels

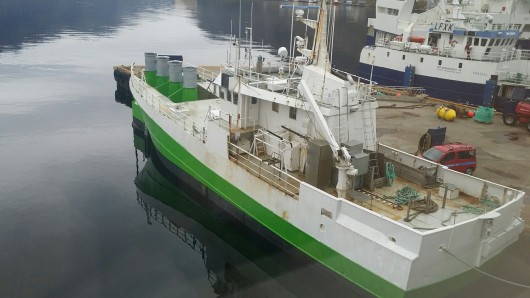

An old fishing trawler has been given new life in Norway, where it's now anchored offshore in the Stadthavet area and serving as a wave power plant. It's part of a project which ultimately calls for larger, purpose-built vessels to convert wave motion into electricity.

The project is being led by Norway's Kvernevik Engineering AS, although the concept for the fishing boat conversion was first developed by Geir Arne Solheim, founder of wave power company (and project partner) Havkraft AS.

The vessel incorporates an existing system known as the "fluctuating water column" concept. It has four vertical chambers installed in its bow, which the surrounding sea water can flow in and out of. Each chamber is capped by a connected turbine, located on the boat's deck.

As waves hit the vessel, they flow up into the chambers, causing the water level inside each one to rise. This in turn causes the air pressure in the top part of the chamber to increase, thus driving the turbine and generating electricity. Likewise, as the water flows back out of the chamber, the lowered air pressure sucks air in through the turbine, again causing it to spin.

The effects of both the inward and outward flow of water is accentuated by the boat itself, as it pitches up and down in the waves. A special anchoring system ensures the vessel is always facing into the oncoming waves.

Source: Gizmag
