Removal of emerging contaminants from wastewater during chemically enhanced primary sedimentation

Published on by in Academic

Removal of emerging contaminants from wastewater during chemically enhanced primary sedimentation

An interdisciplinary team led by the University of Hong Kong (HKU) has developed a novel wastewater treatment system that can effectively remove conventional pollutants, and recover valuable resources such as phosphorus and organic materials (i.e., carbon fibres and volatile organic acids).

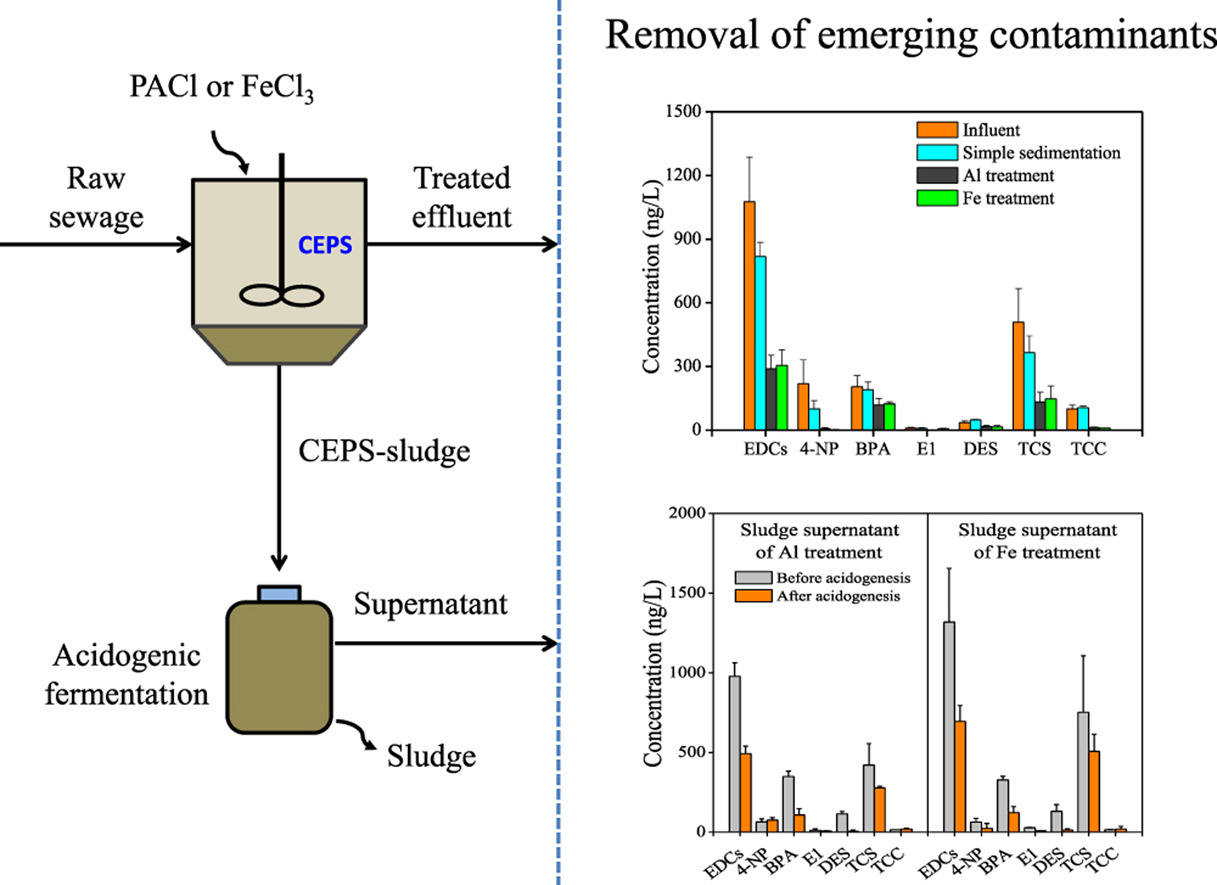

This novel system combines chemically enhanced primary sedimentation (CEPS) of sewage with acidogenic fermentation of sludge in tandem (Image 1). A series of laboratory experiments were conducted to prove that this novel system can effectively remove trace emerging chemical contaminants from wastewater and is more cost effective compared with conventional wastewater treatment systems.

The results of this study have been recently published in Water Research and Environment International.

Moreover, in collaboration with the Nanshan Sewage Treatment Plant in Shenzhen, a pilot wastewater treatment system (Image 2) adopting the novel treatment process has been under construction in Shenzhen since 2019. It will come into operation and testing by this summer if the COVID-19 outbreak subsides.

Background

In the past few years, Professor Xiao-Yan Li of the Department of Civil Engineering who led the interdisciplinary research project, has been collaborating with Professor Kenneth Leung from HKU School of Biological Sciences and the Swire Institute of Marine Science to examine the levels and removal efficiencies of retinoids and oestrogenic EDCs from wastewater by the novel wastewater treatment process developed by the research team, and to compare that with the conventional STPs.

The research team first examined the levels and removal efficiencies of retinoids and oestrogenic EDCs in Shatin, Stanley and Stonecutters Island STPs in Hong Kong by collecting wastewater and sludge samples from different stages of the treatment process, and analyzing the samples for retinoids and oestrogenic EDCs using liquid chromatography with tandem mass spectrometry (LC-MS/MS). Secondly, a series of laboratory experiments were conducted using a small-scale pilot plant of the novel wastewater treatment process. Samples of wastewater and sludge were taken for the chemical analysis using the protocols developed by Professor Leung’s team.

Key Findings

The results indicated that the three STPs can only remove an average of 57% of retinoids (range: 41-82%) and an average of 54% of oestrogenic EDCs (range: 31-79%) from wastewater influents (this work was published in Environment International).

Using the novel treatment system operated under laboratory conditions, the CEPS process alone was demonstrated to be 16 – 19% more effective in removing retinoids and EDCs than the conventional STPs. 65 – 80% of retinoids and 72 – 73% of EDCs can be removed from the CEPS process (Image 3).

After acidogenic fermentation of the CEPS sludge, 50 – 58% of retinoids and 47 – 50% of EDCs were further removed from the supernatants of sludge (this work has been recently published in Water Research).

Compared to the conventional STPs, the novel treatment system integrating CEPS with acidogenic fermentation of sludge is comparatively more efficient in removing emerging chemical contaminants from wastewater, and hence could reduce their environmental impacts.

In terms of cost effectiveness, the CEPS process has been shown, by other studies, to be more cost-effective than the conventional wastewater treatment process. For instance, the cost of CEPS for wastewater treatment is less than a half of that of the secondary wastewater treatment (i.e., activated sludge process). On one hand, acidogenic fermentation of CEPS sludge can further reduce the treatment cost by recovering organic carbon and phosphate resources from the sludge as the harvested organic carbon and phosphate can be utilized to produce carbon fibers and fertilizers respectively. On the other hand, the acidogenic fermentation of CEPS sludge can provide additional removal of pollutants. The novel treatment process, therefore, offers win-win outcomes.

The Way Forward

Professor Li, who led the study, said: “When the pilot wastewater treatment system in Shenzhen comes into operation and testing, we hope to demonstrate that this innovative technology will use less energy, generate cleaner effluent and recover more useful materials from the sludge.”

Abstract

A novel wastewater treatment process, which couples chemically enhanced primary sedimentation (CEPS) of sewage with acidogenic fermentation of sludge in tandem, has recently been developed to improve the removal of pollutants and nutrients, and recover valuable resources such as phosphorus and organics. This study represented the first laboratory-based examination on the level and removal of the emerging contaminants, including retinoids (i.e., retinoic acids (RAs) and their metabolites) and oestrogenic endocrine disrupting chemicals (EDCs; e.g., 4-nonylphenol, bisphenol A, etc.), in sewage, sludge and its supernatant during this novel wastewater treatment process. The results showed that 65% of retinoids and 73% of EDCs were removed from sewage after aluminum (Al) based CEPS, while 80% of retinoids and 72% of EDCs were removed after iron (Fe) based CEPS. After acidogenic fermentation of the CEPS sludge, 50% and 58% of retinoids, and 50% and 47% of EDCs were further removed in the supernatants of Al-sludge and Fe-sludge, respectively. While there were comparable removals for these two classes of emerging contaminants during Al- and Fe-based CEPS and sludge fermentation, Fe-based CEPS of sewage and sludge fermentation should be preferentially considered, given the relatively lower production of Fe-sludge and lower accumulation of retinoids in Fe-sludge. The levels of retinoids and EDCs in the supernatant and sludge changed during acidogenic fermentation of Fe-sludge. The removals of at-4-oxo-RA (i.e., the dominant retinoid) and bisphenol A (i.e., the dominant EDC) in the supernatant followed the pseudo first-order reaction model, with a half-life of 1.62 days (in the first two days) and 1.55 days (in the whole experiment of seven days), respectively. The results demonstrated the effective removal of emerging contaminants from the sewage and the supernatant during the CEPS and acidogenic sludge fermentation.
