Slurry Pump Shaft Sleeve | Warman Pump Shaft Sleeve Replacement

Published on by in Technology

Slurry Pump Shaft Sleeve | Warman Pump Shaft Sleeve Replacement

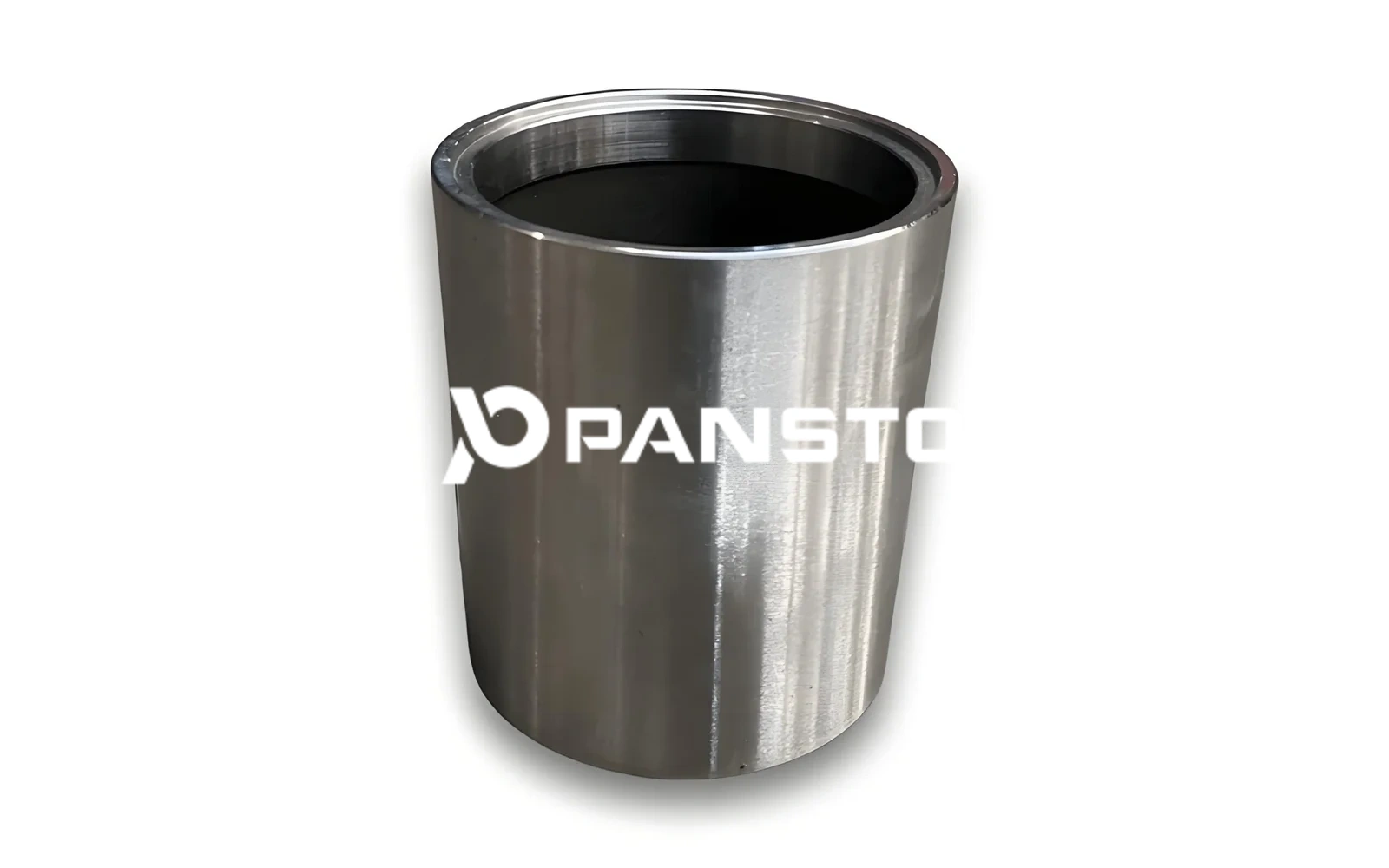

Pansto shaft sleeves are made from wear-resistant materials to prevent abrasion and corrosion on the pump shaft and other rotating components, enhancing the durability and reliability of the equipment.Replacement for Warman AH/HH/L Pump shaft sleeve
Email: info@slurrypumppansto.com
Mob/WhatsApp/Wechat: +86-15732149758
Web: www.slurrypumppansto.com

Description

The shaft sleeve is typically installed on the pump shaft, usually located in the area between the pump shaft and the  pump casing , especially at the inlet side of the slurry pump.

Slurry Pump Shaft Sleeve is also a quick – wear part of slurry pumps. The design and material of shaft sleeve is significant to slurry pump service life,  The slurry pump  shaft sleeve protects pump shaft from abrasion and corrosion within seal arrangements, Pansto offers different materials of shaft sleeve for international brand slurry pumps.

Functions

Protecting the Pump Shaft

Preventing Wear and Corrosion: The pumped medium contains a large amount of abrasive solid particles. The shaft sleeve directly contacts the packing or medium, absorbing wear and corrosion to protect the expensive pump shaft from damage.

Auxiliary Sealing

Provides Sealing Surface: The shaft sleeve offers a smooth, flat rotating sealing contact surface for packing or mechanical seals, facilitating effective sealing and preventing slurry leakage into the bearing assembly.

Reduced Maintenance Costs

Replaceability: As a wear part, the sleeve is installed via an easily replaceable slip fit on the pump shaft. When the sleeve wears severely, only the sleeve needs replacement—not the entire pump shaft—significantly lowering maintenance costs and minimizing downtime.

Features

Wear Parts

Bushings are among the most rapidly worn components in slurry pumps and require regular inspection and replacement.
Multiple Materials Wear Resistance: Slurry pump bushings are typically manufactured from high-hardness, wear-resistant materials to withstand harsh operating conditions.

High Wear-Resistant Materials

Common materials include: high-chromium alloys, ceramic coatings, and other corrosion-resistant alloys. Ceramic coatings particularly enhance wear resistance and extend service life.

High Dimensional Accuracy

To ensure precise fit with seals and maintain concentricity, bushings undergo precision machining to guarantee outer diameter and end-face accuracy.
