Smart Graphene Membrane Desalinates Water

Published on by in Technology

Smart Graphene Membrane Desalinates Water

Scientists have created a simple and scalable graphene-based hybrid desalination membrane which can provide clean water for agriculture and potentially human consumption.

An international team of researchers, including scientists from Shinshu University (Japan) and the director of Penn State's ATOMIC Center, has developed a graphene-based coating for desalination membranes that is more robust and scalable than current nanofiltration membrane technologies. The result could be a sturdy and practical membrane for clean water solutions as well as protein separation, wastewater treatment and pharmaceutical and food industry applications.

smart graphene.png

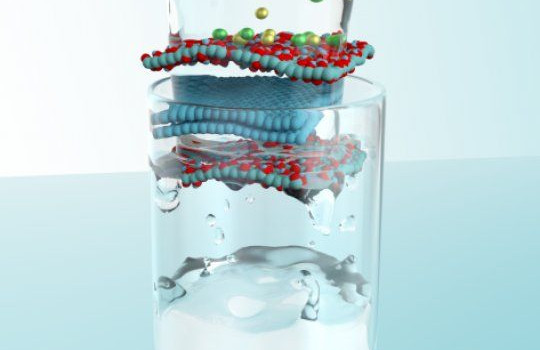

Image: A scalable graphene-based membrane for producing clean water.
Credit: Aaron Morelos-Gomez

"Our dream is to create a smart membrane that combines high flow rates, high efficiency, long lifetime, self-healing and eliminates bio and inorganic fouling in order to provide clean water solutions for the many parts of the world where clean water is scarce," says Mauricio Terrones, professor of physics, chemistry and materials science and engineering, Penn State. "This work is taking us in that direction."

The hybrid membrane the team developed uses a simple spray-on technology to coat a mixture of graphene oxide and few-layered graphene in solution onto a backbone support membrane of polysulfone modified with polyvinyl alcohol. The support membrane increased the robustness of the hybrid membrane, which was able to stand up to intense cross-flow, high pressure and chlorine exposure. Even in early stages of development, the membrane rejects 85 percent of salt, adequate for agricultural purposes though not for drinking, and 96 percent of dye molecules. Highly polluting dyes from textile manufacturing is commonly discharged into rivers in some areas of the world.

Chlorine is generally used to mitigate biofouling in membranes, but chlorine rapidly degrades the performance of current polymer membranes. The addition of few-layer graphene makes the new membrane highly resistant to chlorine.

Graphene is known to have high mechanical strength, and porous graphene is predicted to have 100 percent salt rejection, making it a potentially ideal material for desalination membranes. However, there are many challenges with scaling up graphene to industrial quantities including controlling defects and the need for complex transfer techniques required to handle the two-dimensional material. The current work attempts to overcome the scalability issues and provide an inexpensive, high quality membrane at manufacturing scale.

First author Aaron Morelos-Gomez says, "Our membrane overcomes the water solubility of graphene oxide by using polyvinyl alcohol as an adhesive making it resistant against strong water flow and high pressures. By mixing graphene oxide with graphene we could also improve significantly its chemical resistance"

Professor Morinobu Endo concludes that "This is the first step towards more effective and smart membranes that could self-adapt depending on their environment."

Source: Science Daily

Research paper: Nature Technology
