Supercomputer Provides Access to Water, Energy and the Internet
Published on by Naizam (Nai) Jaffer, Municipal Operations Manager (Water, Wastewater, Stormwater, Roads, & Parks) in Technology

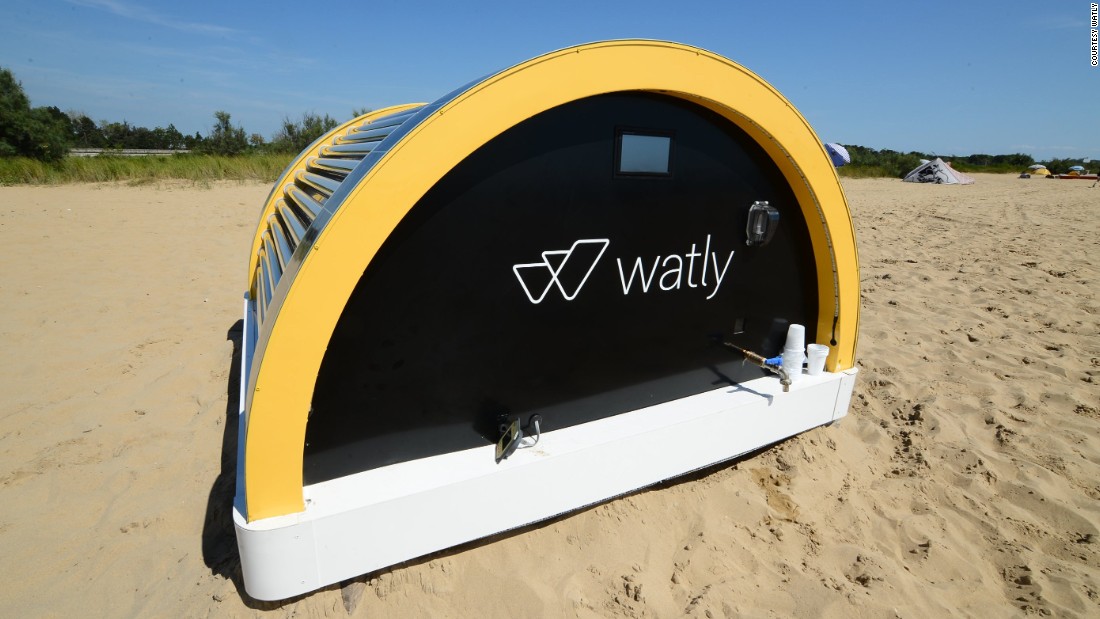

A new machine called the Watly offers solutions to three of society’s most important challenges – ensuring access to clean water, sustainable energy generation and reaping the benefits of the evolving digital revolution.
Supported by funds from the Horizon 2020 project, the innovative SME behind the project is now nearly ready to unveil its first full-scale Watly machine.
1.1 billion people worldwide still do not have access to a safe source of drinking water, causing more than 4 200 deaths from water-related diseases every day. 1.3 billion people lack access to electricity (more than a fifth of world’s population) and 5 billion worldwide still have no access to the internet.
Water and energy are highly interdependent and crucial to human well-being and sustainable socio-economic development. Watly, a trailblazing SME based in Spain and Italy, has devised a truly revolutionary way to tackle all three of these challenges with one machine.
The Watly machine comprises a central array of solar panels connected to four wing units, each of which houses a bank of vapour compression distillation tubes that can boil unsafe water from sources such as rivers and produce safe, clean water fit for human consumption.
But a crucial factor is that the energy used to drive that water purification process is not the electricity generated by the panels. Instead, the process is driven by waste heat harvested from the panels by an air circulation system – an ingenious technique that founder and CEO of Watly, Marco Attisani describes as effectively self-powering. ‘It does not use any energy,’ he confirmed.
In turn, this generates a number of associated benefits.
These include optimisation of the solar panels – which are kept at their most effective operating temperature of 25°C irrespective of ambient conditions – and the delivery of all the generated electric power to support other more appropriate applications.
These can vary from mobile phone recharging through ‘cloud’ connection to the internet to conventional electricity supply via an internal inverter that carries out DC-AC conversion.
The amount of power that a machine could generate rests on several important factors, though Attisani believes that 150kWhr per day could be achievable. The output of purified water from a fully functional machine operating at peak efficiency would potentially be around 5 000 litres per day.
Finally, the machine’s IT capabilities promise to go beyond simply supporting personal communications, such as email – the company reckons that each machine could have a wireless connectivity zone with a radius of up to 1 kilometre.
The full 3.0 Watly machine is due to be unveiled in May 2017 (also the official end of the self-named Horizon 2020 WATLY project) and the company currently has the capacity to manufacture 50 machines per year, with the first five units going to customers by the end of 2017.
Read more at: CORDIS
