Treatment of Sewage and Reuse on Large Construction Site with Packaged Sewage Treatment System

Treatment of Sewage & Reuse on Large Construction Site with BMS Blivet (Case Study)

Case Study on the treatment of sewage from a large construction site and its reuse using the BMS Blivet UV Package Sewage Treatment System.

BMS Project Outline:  Butler Manufacturing Services Ltd. (BMS) were appointed by Roadbridge to provide sewage treatment for all their construction workers and the site offices during the construction phase of the Center Parcs Longford Forest Project.  The project was the biggest single investment in Irish Tourism (€233 m) with Roadbridge appointed as the Main Civil Engineering Contractor.

BMS worked with Roadbridge to produce an innovative version of its class-leading Blivet Package Sewage Treatment Plant integrating UV disinfection at the outlet to make the treated effluent suitable for non-potable reuse on site.  The Blivet UV was chosen as it offered a big advantage that instead of the very costly option of having to tanker untreated sewage away from the site once/twice weekly for disposal at a large central work that the sewage was instead completely treated and disinfected on site and then reused.

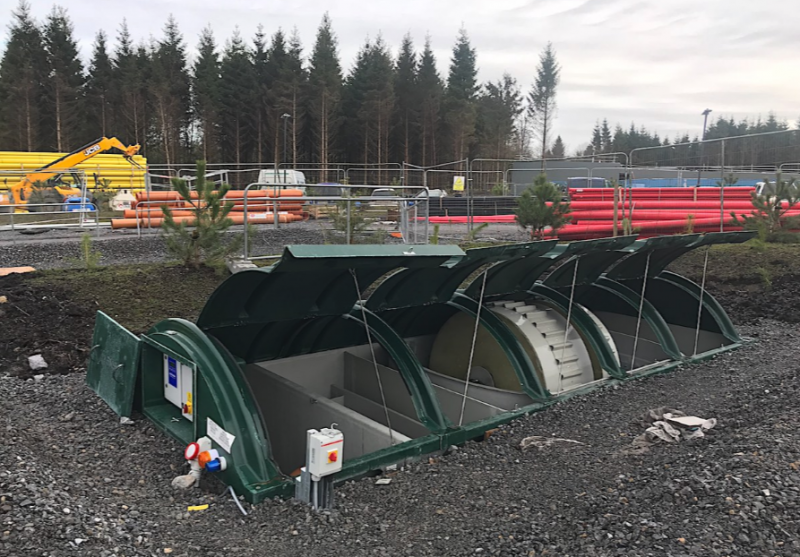

Image by BMS





The project had substantial environmental/financial benefits;

1. Ongoing Cost Savings;

2. Big Environmental Savings;

3. Long Term Savings;

A BL1000 UV was selected for this project.  This is typically a 100 Population Equivalent System.  At its peak, this Blivet treated up to 500 staff/workers on site.  BMS offers a free design service to clients for both sewage treatment and surface water projects.

Final Effluent Results:

The Blivet performed exceptionally well over the nearly two years of its installation.  Some sample results are below.

Project Legacy/Future:

Center Parcs Longford Forest was handed over by Main Contractors Roadbridge and Sisk in early July 2019.  The success of the BMS Blivet UV was proven by the Main Construction Contractor J Sisk and Sons also installing a BL1000 UV at the site to treat the sewage for their construction workers on site.  2 BMS BL1000 UV Blivet’s treated all the sewage generated by all the workers on site which peaked at 1000 and turned it into water suitable for non-potable reuse.  Furthermore, the utilization of the Blivet UV in the project was a Green Award  2018 Finalist.  Overall the project provided a very quick payback for both main contractors, substantially improved the environmental footprint of the project and created ongoing value; both the BL1000 UVs have now been redeployed to two other large construction sites doing the same job again.  It’s a project we are very proud to have been involved in, especially since it is only 26 km from our factory door.  Roadbridge and Sisk also should be commended on the fantastic job that they did.

What we learned:

Like any new concept, unforeseen problems can occur.  However, when they did BMS quickly solved them;

A glass sleeve protects the UV bulb from direct contact with treated effluent to be disinfected.  If this becomes dirty it affects the level of disinfection.  BMS initially installed a UV system with manual quartz sleeve cleaning on the advice of the manufacturer.  It became clear over time that the sleeve required more regular cleaning than originally envisaged.  BMS ethos has always been to minimize maintenance with automation.  Therefore, a solution with automatic cleaning of the quartz sleeve was installed by BMS, eliminating the problem into the future.

A second issue is that the effluent generated on a site such as Center Parcs is closer to a full Population Equivalent than a normal office, as the workers on site are based there for the whole day rather than leaving at lunchtime as would be the case in most offices.

Finally, BMS pioneered another improvement where we integrated a control kiosk into the end of the Blivet, so all control panels are fully integrated into the Blivet, accessible from ground level and do not need to be disconnected when a Blivet is moved.

You can see how the Blivet works and its unique technology in the short 3D Video below.

Find the full case study results and figures on Butler MS website.
