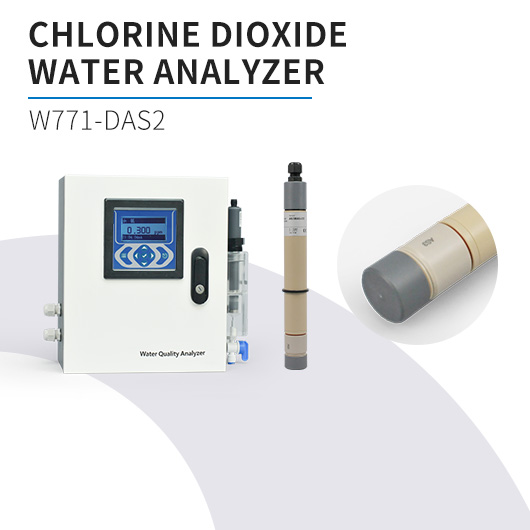

Inline Chlorine&ClO₂ Analyzer with AS2 Sensor for Industrial Process Water
Published on by Susan Su for Dabeco
Equipped with a reliable, economical amperometric sensor for continuous measurement of free chlorine or chlorine dioxide in drinking water and process applications. With a durable PVC-U housing, it suits standard environments (≤50°C) by balancing performance and value.
Its core potentiostatic three-electrode system ensures high accuracy and long-term signal stability, supporting effective disinfection control. Easy to integrate, it offers multiple electronic options: analog voltage, digital processing (analog/digital Modbus RTU), and 4-20 mA current loop.
It features automatic temperature compensation and enables indefinite dry storage (no electrolyte), simplifying inventory management. As a cost-effective, reliable choice, the W761-DAS2 excels in standard water treatment—from municipal drinking water to industrial process water—where extreme conditions are absent.
Working Principle
W761-DAS2 contains an display instrument and a versatile and cost-effective amperometric sensor for continuous monitoring of free chlorine or chlorine dioxide. With its PVC-U housing, it is designed for reliable performance in standard drinking water and process water applications up to 50°C, providing a robust and economical solution for disinfection control.
Application Fields
Disinfection control in municipal drinking water treatment plants.
Monitoring of chlorine levels in commercial and residential building water systems.
Process water treatment in various industrial settings (where temperature is ≤ 50°C).
Cooling water systems operating within standard temperature ranges.
Functional Features
Cost-Effective & Robust:PVC-U housing provides durability for standard applications.
Precise Measurement: Potentiostatic 3-electrode amperometric system ensures accuracy.
Output Flexibility: Available in analog (voltage/4-20 mA) and digital Modbus RTU versions.
Optimized Maintenance:Optional RV1 cleaning accessory extends maintenance intervals.
Logistical Advantage: Can be stored dry (without electrolyte) indefinitely.
Technical Parameters
Parameter | Specification |
Measurands | Free Chlorine (AS2-CL), Chlorine Dioxide (AS2-CD) |
Application Medium | Drinking Water, Process Water (up to 50°C) |
Housing Material | PVC-U |
Measuring Ranges (example) | CL (H): 0.005...2.000 ppm (without RV1) |
Output Signals | Analog: 0...±2 V, 4...20 mA; Digital: Modbus RTU |
Max. Working Pressure | 8 bar (with retaining ring in flow chamber) |
Operating Temperature | Water: 0...+50°C |
pH Range | CL: pH 5 - pH 9 |
Response Time (T90) | ≈ 30 seconds |
