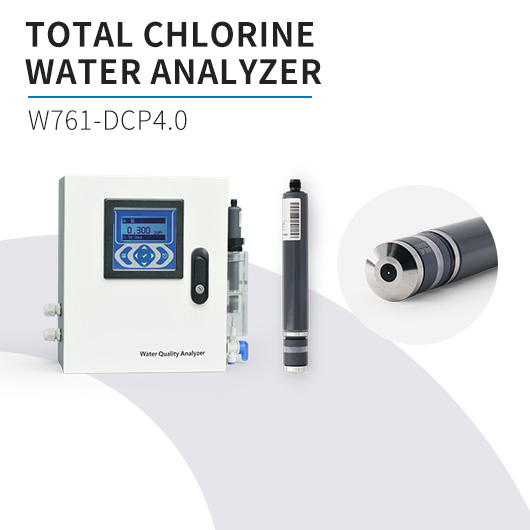

Intelligent Online Total Chlorine Analyzer with CP4.0 Sensor for Medical Wastewater

The Online Total Chlorine Analyzer is equipped with a German-made CP4.0 sensor, adopting special osmotic membrane technology. It resists chemical interference (mainly surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, and minimal maintenance, it provides users with reliable and accurate data.

Featuring an LCD screen, the instrument can automatically identify measured parameters. It has current 4-20mA and RS485 output, allows free setting of the measurement range, provides high and low limit alarm prompts, The electrode supports multiple automatic calibration methods. Widely applied in measuring tap water; swimming pool water ; medical wastewater; sewage treatment ; seawater; high-salt seawater etc.

Working Principle:

The entire measurement system mainly consists of two parts: the instrument and the sensor. The instrument displays the disinfectant value (main measured value), the pH value of the aqueous solution (a pH electrode is required for selection), and the working status. It outputs signals such as analog, digital, and switching signals.

The sensor is from the original German - imported RG brand and operates based on the principle of the constant - current method of the film - covered three (dual) electrodes. It has the characteristics of anti-interference and anti-pollution.



Application Fields:

Functional Features

  1. Standard - equipped with imported sensors, ensuring accurate measurement and stable performance.

  2. One-key calibration, historical data recording and export.

  3. Standard MODBUS RTU communication protocol.

  4. Dual high-impedance pre-amplifiers: High input impedance, noise-proof, and strong anti-interference ability.

  5. Stable zero-point. Only one-point calibration is required on-site, and multiple calibration methods are also provided.

  6. Human-machine interaction: Menu-based operation structure, allowing users to operate following on-screen prompts.

  7. Multi - parameter display on the same screen: Simultaneously display the main measured value, pH value (optional), current output, and working status.

  8. Two-way output signals: The software can select from three output modes: 4 - 20mA / 20 - 4mA / 0 - 20mA.

  9. Free setting of the measurement range and alarm upper and lower limits; High and low limit over-range alarm prompts.

  10. Three sets of relay control switches with an adjustable hysteresis control range.

  11. Self - set password: Users can set or modify passwords to avoid misoperation.

Technical Parameters



Specification

Detailed information

Measurement

Measurement Parameters

Chlorine , pH (optional)

Measuring Ranges

0.005～0.500mg/L;0.005～2.000mg/L;0.05～5.00mg/L;0.05～10.00mg/L;0.05～20.00mg/L;

Lower Limit of Measurement

0.005mg/L

Resolution

0.001～0.01mg/L（depending on the measuring range）

Accuracy (@25℃, pH 7.2)

In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one）

In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one)

In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one)

In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one)

Response time

T90≈3 minutes



Drift

Approximately - 1% per month (after calibration at 25℃ and pH = 7.2)

PH range

4.0 - 12.0 (depending on the electrode)

Maintenance Cycle

≥90days

Conductivity range

10μS/cm～200mS/cm

Electrical

Display

LCD liquid - crystal screen



Data Storage

It has an automatic storage function and data protection in case of power failure. In total, it can store 110,000 pieces of data.



Power supply

105～235VAC±10%，50±1Hz/9-36VDC (DC is optional)



Power

≤3W（including the sensor）



Analog Output

Two-way analog output, with optional signals: 4 - 20mA / 20 - 4mA / 0 - 20mA (load resistance < 500Ω)



Digital output

RS485 interface, MODBUS RTU protocol



Relay output

Three-way relay 3A 250VAC; 3A 28VDC or 120VAC

Physical prosperities

Material

Powder - coated steel plate

Size

300*250*165mm（H*W*D）

Weight

6kg

Waterway interface

2-inch or 3-inch hose （custom made）

Ambient performance

Flow rate

In flow chamber：250～500mL/min

Protection level

IP43

Water pressure

≤6 bar（matching a pressure - reducing valve with the instrument）

Working humidity

<90%，no condensation

Working temperature

Instrument: 0℃ - 55℃; Water temperature: 0.1℃ - 45℃

Storage temperature

Instrument：-20°C～60°C；sensor：0.1°C～55°C
