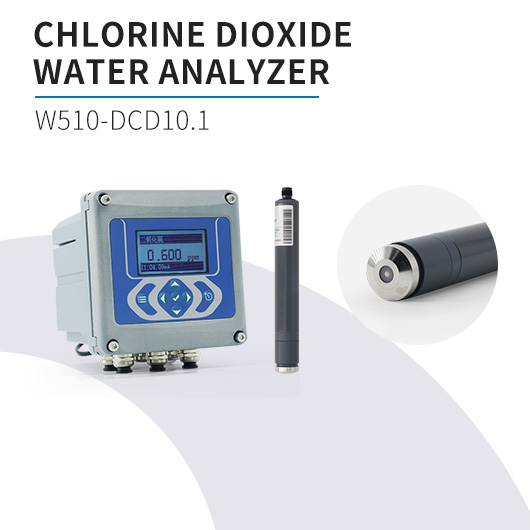

Online Chlorine Dioxide Analyzer with CD10.1 Sensor for Processing Water
Published on by Susan Su for Dabeco
The online chlorine dioxide analyzer is equipped with a German-made CD10.1 sensor, adopting special osmotic membrane technology. It resists chemical interference (mainly surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, minimal maintenance, it delivers reliable and accurate data.
Its application fields include tap water, chlorine dioxide generator, sewage treatment, pipeline disinfection and fruit and vegetable disinfection etc.
Functional Features
Dual-channel access, allowing for configuration according to specific needs.
Plug - and - play sensors are realized, enabling fast and convenient installation and replacement of electrodes.
The operation interface is simple, reducing operational errors and ensuring reliable results.
Visual operation on the LCD screen, with a rich and comprehensive interface content.
It has multiple data output methods, such as 4 - 20mA and MODBUS RS485.
The controller supports wall-mounted installation, panel installation, and clamp-tube installation.
Made of aluminum alloy material, it has high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.
Working Principle
The entire measurement system mainly comprises two components: the instrument and the sensor. The instrument displays the chlorine dioxide value (the main measured value), the pH value of the aqueous solution (a pH electrode is optional), and the working status. It outputs signals such as analog quantity, digital quantity, and switching quantity.
The sensor adopts the original imported RG brand from Germany and operates on the principle of the constant current method of the three (double) - electrode film - covered type, which has the characteristics of anti - interference and anti - pollution. The sensor is not restricted by water quality conditions and can be applied in various industries.
Application Fields
Tap water: 0 - 2mg/L;
Chlorine dioxide generator: 0 - 20mg/L;
Sewage treatment: 0 - 20mg/L;
Pipeline disinfection: 0 - 2.5mg/L (water temperature up to 70℃);
Fruit and vegetable disinfection: 0 - 200mg/L.
Technical Parameters
Specification | Detailed information | |
Measurement | Measurement Parameters | Chlorine dioxide, pH (optional) |
Measuring Ranges | 0.005～0.500mg/L; 0.005～2.000mg/L; 0.05～5.00mg/L;0.05～10.00mg/L; 0.05～20.00mg/L | |
Lower Limit of Measurement | 0.005mg/L | |
Resolution | 0.001mg/L（depending on the measuring range） | |
Accuracy (@25℃, pH 7.2) | In the measurement range of 0 - 1ppm, when calibrated at 0.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one） | |
In the measurement range of 1 - 2ppm, when calibrated at 1.5ppm, the error is ±2% of the measured value or ±0.03ppm.（take the larger one) | ||
In the measurement range of 0 - 10ppm, when calibrated at 5.0ppm, the error is ±2% of the measured value or ±0.3ppm.（take the larger one) | ||
In the measurement range of 10 - 20ppm, when calibrated at 15.0ppm, the error is ±5% of the measured value or ±0.5ppm.（take the larger one) | ||
Response time | T90≈2 - 8 minutes | |
Repeatability | ≤3% | |
Drift | Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) | |
PH range | 1.0 - 12.0 (depending on the electrode) | |
Maintenance Cycle | The replacement cycle of the membrane cap is one year (depending on water quality) | |
Flow rate | In the flow chamber: 250 - 500mL/min | |
Operating temperature | 0 - 70℃ | |
Electrical | Display | LCD liquid - crystal screen |
Power supply | 105～235VAC，50±1Hz/24VDC±5%(DC is optional) | |
Power | ≤12W（including the sensor） | |
Analog Output | Two ways of analog outputs (load resistance < 500Ω) | |
Digital output | RS485 interface, MODBUS RTU protocol | |
Relay output | Three-way relay 5A 250VAC，5A 30VDC | |
Physical prosperities | Material | Bottom shell: Cast aluminum with plastic spray coating Top cover: PA66 + 30GF with paint coating |
Size | 145*145*174mm（H*W*D） | |
Weight | 1.8kg（Not including the sensor） | |
Waterway interface | 2-inch or 3-inch hose （custom made） | |
Ambient performance | Flow rate | In flow chamber：250～500mL/min |
Protection level | IP65 | |
Water pressure | ≤6 bar（matching a pressure - reducing valve with the instrument） | |
Working humidity | <90%，no condensation | |
Working temperature | Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃ （0.1°C to 70°C for special applications） | |
Storage temperature | Instrument：-20°C～60°C；sensor：0.1°C～55°C | |
