Online Free Chlorine Analyzer with CCF1.0 Sensor for Drinking Water
Published on by Susan Su for Dabeco

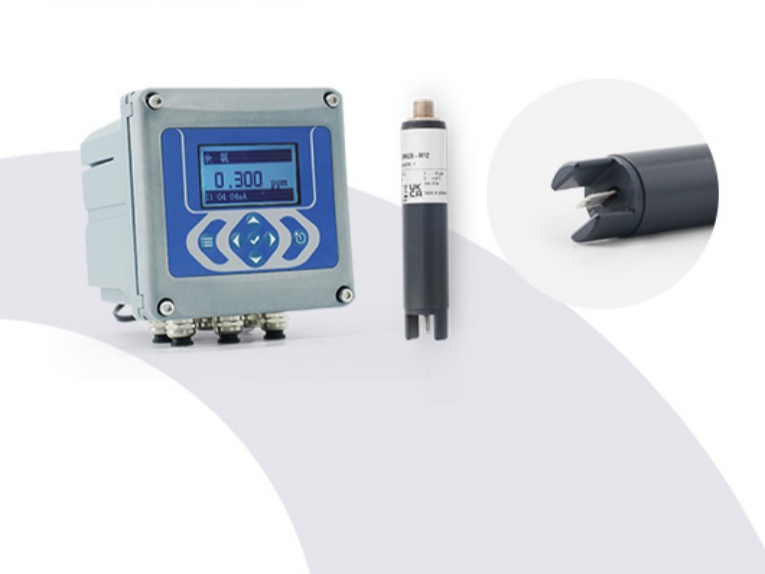

This free chlorine analyzer consists of an instrument with LCD display and a German Reiss-powered free chlorine sensor CCF1.0, which redefines water quality monitoring with three-electrode constant amperometry. It eliminates electrolytes and membrane caps for zero maintenance, cutting 90% of labor/time costs, and also has special features of easy handling, signal stability in chlorine-free operation, fast response time, short run-in time, 8-bar pressure resistance, strong tolerates surfactants.
This analyzer 510-CCF1.0 is applied in swimming pools and drinking water plants.
Ambient Conditions
stable pH value
max. temperature: 45 °C
max. pressure: 8 bar
Conductivity: 0.2 to 10 mS/cm
Water Flow: 5~100cm/s
Core Applications
Swimming Pool Water: Public/private pools, water parks—ensures disinfection efficiency while preventing over-chlorination (avoiding skin/eye irritation).
Drinking Water: Municipal water treatment plants, secondary water supply stations, and centralized water systems (hotels, schools, enterprises)—complies with drinking water safety standards by monitoring residual free chlorine levels.
Product Features
lEasy handling
lSignal stability in chlorine-free operation
lShort response time
lShort run-in time
lFor high pressures
lTolerates surfactants
lNo maintenance required
Technical Specifications
| Measurement Parameters | Free chlorine, pH dependent |
| Measuring Ranges | 0.05 ~ 10.00mg/ |
| Resolution | 0.01mg/L |
| Response time | T90≈20 seconds |
| Measuring water temperature | 0... + 45 °C (no ice crystals in the measuring water) |
| Ambient temperature | 0... + 55 °C |
| Temperature compensation | Automatically, through integrated temperature sensor Temperature jumps are to be avoided |
| Max. allowed working pressure - Operation without retaining ring | - 0.5 bar |
| - no pressure surges and/or vibrations | |
Operation with retaining ring in TARAflow FLC | - 8 bar |
| - no pressure surges and/or vibrations (see option 1) | |
| Flow rate(face velocity) | approx. 15 - 100 l/h (15 - 100 cm/s) in TARAflow FLC, low flow is present (see diagram "Slope of TARAeasy CCF1 versus flowrate", p. 5) |
| pH - range | pH 6 – pH 9, observe dissociation curve HOCL (see diagram "Slope of TARAeasy CCF1 versus pH", p. 5) |
| Conductivity | 0.2 to 10 mS/cm |
| Run - in time | approx. 15 min. |
| Response time | T90: approx. 20 sec. |
| Zero point adjustment | Not necessary |
| Protection class | IP68 |
| Material | PVC - U |
