Online Peracetic Acid Analyzer with P10.1 sensor for High Water Temperature upto 60 °C

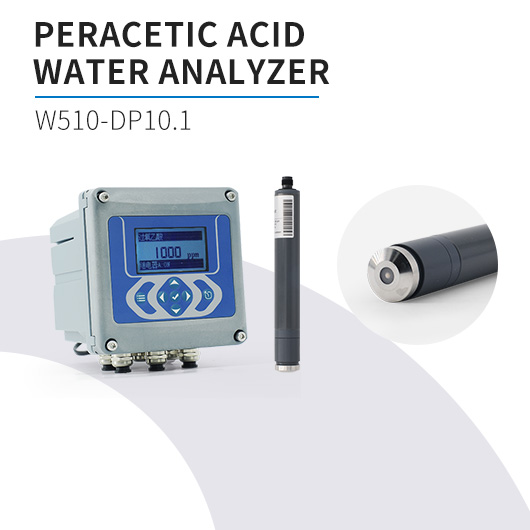

The Online Peracetic Acid Analyzer consists of the instrument for LCD type displaying peracetic acid value, optional aqueous solution pH value, and working status; outputting analog, digital, and switching signals and a German-made P10.1 sensor which resists chemical interference (mainly from surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, and minimal maintenance, it provides users with reliable and accurate data.

This analyzer is mainly used in fruit and vegetable disinfection , CIP bottle washing , medical endoscope disinfection and cold tank lines etc.



Application Fields

Functional Features

  1. Dual-channel access, which can be configured according to requirements.

  2. Enables plug - and - play of sensors, facilitating quick and easy installation and replacement of electrodes.

  3. The interface has a simple operation, which can reduce operational errors and ensure reliable results.

  4. Visual operation on the LCD screen with a rich and comprehensive interface.

  5. Equipped with multiple data output methods including 4 - 20mA and MODBUS RS485.

  6. The controller supports wall - mounting / panel - mounting / pipe - clip mounting.

  7. Made of aluminum alloy, it has high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness.

Technical Parameters



Specification

Detailed information

Measurement

Measurement Parameters

Peracetic Acid, pH (optional)

Measuring Ranges

0～20.00mg/L;   0～200.0mg/L;   5～500.0mg/L;

5～2000mg/L;   50～5000mg/L;50～20000mg/L;   500～50000mg/L

Lower Limit of Measurement

0.01mg/L(depending on the electrode)

Resolution

0.01-100mg/L（depending on the measuring range）

Accuracy (@25℃, pH 7.2)

In the measurement range of 0 - 1000ppm, when calibrated at 400ppm, the error is ±2% of the measured value or ±3ppm.（take the larger one）

In the measurement range of 1000 - 2000ppm, when calibrated at 1600ppm, the error is ±5%of the measured value or ±5ppm.（take the larger one)

Response time

T90≈8 minutes

Drift

Approximately - 1% per month (after calibration at 25℃ and pH = 7.2)

PH range

1.0 - 8.0 (depending on the electrode)

Maintenance Cycle

≥90days

Operating temperature

0 - 45℃

Electrical

Display

LCD liquid - crystal screen

Power supply

105～235VAC，50±1Hz/24VDC±5%(DC is optional)

Power

≤12W（including the sensor）

Analog Output

Two ways of analog outputs (load resistance < 500Ω)

Digital output

RS485 interface, MODBUS RTU protocol

Relay output

Three-way relay   5A 250VAC，5A 30VDC

Relay output

Three-way relay 3A 250VAC，3A 28VDC或120VAC

Physical prosperities

Material

Bottom shell: Cast aluminum with plastic spray coating                                 Top cover: PA66 + 30GF with paint coating

Size

145*145*174mm（H*W*D）

Weight

1.8kg（Not including the sensor）

Waterway interface

2-inch or 3-inch hose （custom made）

Ambient performance

Flow rate

In flow chamber：250～500mL/min

Protection level

IP65

Water pressure

≤6 bar（matching a pressure - reducing valve with the instrument）

Working humidity

<90%，no condensation

Working temperature

Instrument：-15℃～50℃；senseor water temperature：0.1℃～45℃

Storage temperature

Instrument：-20°C～60°C；sensor：0.1°C～55°C
