Vertical Bar Screen for Wastewater
Published on by Guillaume Dupre, CEO at FB PROCEDES for FB PROCEDES

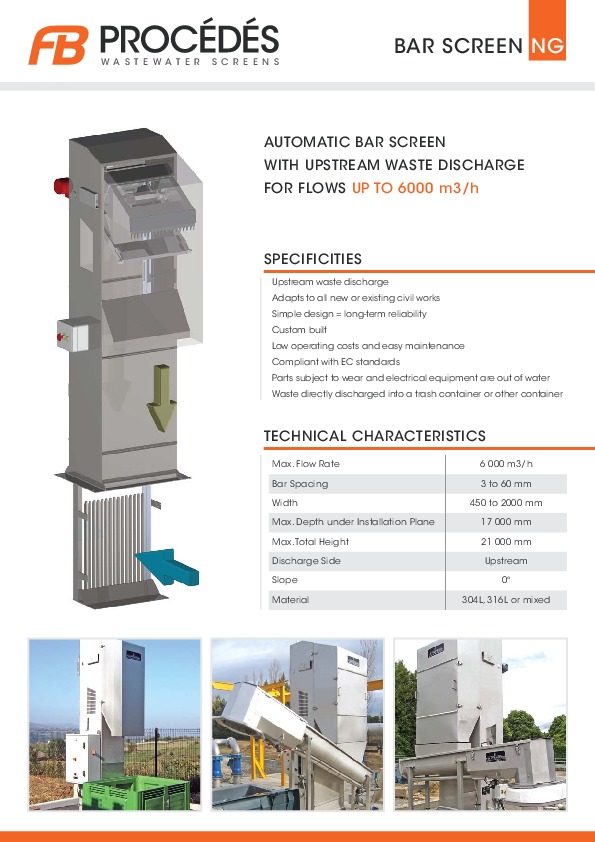

The Bar Screen Type NG is the first Bar Screen designed by FB PROCEDES. It has been optimised over the last 30 years thanks to the feedback of thousands of clients.
It is entirely custom built according to the technical requirements of the project. It’s a vertical Bar Screen, that uses a grapple rake hold by a polyester strap to rake the screen and discharge the waste into a container.
The Bar Screen Type NG can be adapted to any civil works, several options are available, and its design allows either fine or coarse screening, from 3 mm to 30 mm. It covers a great range of projects, with a width between 450 to 2 000 mm, and a depth up to 17 000 mm.
This Bar Screen can handle flows up to 6 000 m3/h.
Using a unique and innovative Gravity-Based Screening System, this Bar Screen has a simple design, making it extremely robust, reliable, easy to operate, maintain, and it can fit either small or large stations.
