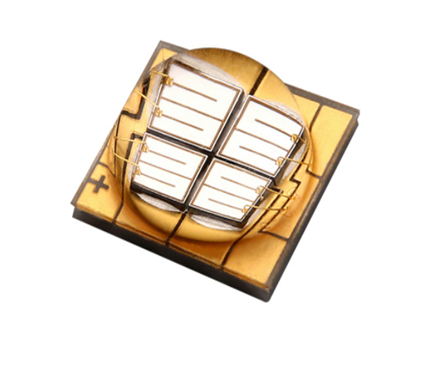

Greeenrgy 280nm 275nm 50mW UVC LED For Protein Analysis Equipment - Greenergy lighting Co.,Limited

Published on July 8, 2019 05:16 by Nail Wang, Employee at Greenergy Lighting Co.ltd -- thespecialist of UV LED for Greenergy Lighting Co.ltd -Specialist of UV LED, Sterilizer UV Curing

Built-in lens provides light focus, reduces assembly cost and parts count
Narrow spectrum enables elimination of filters
Relatively low system cost
Superior irradiance (mW/nm/cm²)
Environment-isolated package
Flood radiation pattern with a viewing angle of 60°
Maximum drive current of 200 mA in continuous mode
Light output available in 30mW
Typical L50 of 10000 hours at 20-600 mA
Hermetic, through hole package
RoHS-compliant

Technical Parameters

Specification of Greeenrgy 280nm 275nm UVC LED For Protein Analysis Equipment

Place of Origin:	China
Brand Name:	LVL
Model Number:	GL275-6868G
Certification:	ROSH

1-1 Electro-Optical characteristics at 200mA

Parameter	Symbol	Value	Unit
Peak wavelength	p	275-280	nm
Optical Power	Ø	50	mW
Forward Voltage	VF	5-8	V
Spectrum Half Width	Δλ	10	nm
view Angle	2©1/2	120	deg.
Thermal resistance	R0J-s	3.0	ºC /W

1-2 Absolute Maximum Ratings

Parameter	Symbol	Value	Unit
Forward Current, DC	IF	350	mA
Power Consumption	pW	2100	mW
Operating Temperature	Topr	-30 ~ +50	ºC
Storage Temperature	Tstg	-40 ~ +130	ºC

Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. eis the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. R J-sis the thermal resistance between chip junction to package bottom

Our factry

Why you choose Greenergy

1,Partners in the Workplace,A list of outstanding organizations we have teamed with to help building a successful quality controlling program.

2,Our UV LED Bulb are sold to reseller professionals in over 50 countries worldwide for years.
3,All of our UV LED Bulb  made fresh within one month of your order, and has a two year warranty.
4,UV  LED Bulb   in the China in accordance to strict industry regulations.
5,All of UV LED Bulb   are subject to continuous laboratory quality testing.

6,We offer top quality light fixtures for prices well below the market standard.

Quality Control:
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification
fixtures modern are produced through standard procedures conducted by trained staffs.
100% of the led light fixtures will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each led Cabinet light should pass all these QC procedures before the packing.

Trade Terms:
1. Payment term: T/T, L/C ,Western Union,Paypal
2. Lead time : normally in 5~10 days after confirmation .
3. Sample policy : Samples are always availble for each model,though it will be charged.
4. Shipping port: Changsha , China

Delivery detail:
Carrier is available by express,or sea shippiung or ordinary air cargo,

Our services:
1. we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Quality is guaranteed by professional team of R&D and QC.

About Us

The Leader of UV LED in China, Greenergy Lighting in LED for yeears, covers around 1000 square meters in Changsha China. We focus on providing environment-friendly but energy saving LED solutions to our people.UV LED is our specialty.
