Greenergy 2019 254nm 255nm LED Diode For Ultraviolet Sterilizer - Greenergy lighting Co.,Limited

Published on by for Greenergy Lighting Co.ltd -Specialist of UV LED, Sterilizer UV Curing

Greenergy 2019 254nm 255nm LED Diode For Ultraviolet Sterilizer - Greenergy lighting Co.,Limited
Features



Technical Parameters

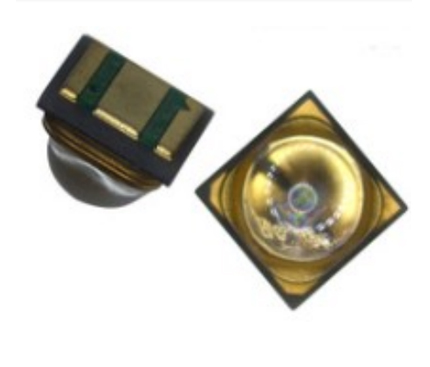

Specification of Greenergy 2019 254nm 255nm LED Diode for ultraviolet  sterilizer



Place of Origin:

China

Brand Name:

LVL

Model Number:

GL255-6868G

Certification:

ROSH



1-1 Electro-Optical characteristics at 350mA

Parameter

Symbol

Value

Unit

Peak wavelength

 p

255

nm

Optical Power

 Ø

9-14

mW

Forward Voltage

VF

5-8

V

Spectrum Half Width

 Δλ

10

nm

view  Angle

2©1/2

60

deg.

Thermal resistance

R0J-s

3.0

ºC /W



1-2 Absolute Maximum Ratings

Parameter

Symbol

Value

Unit

Forward Current, DC

IF

350

mA

Power Consumption

pW

2380

mW

Operating Temperature

Topr

-30 ~ +50

ºC

Storage Temperature

Tstg

-40 ~ +130

ºC


Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. eis the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. R  J-sis the thermal resistance between chip junction to package bottom



Our factry







Why you choose Greenergy

 1,Partners in the Workplace,A list of outstanding organizations we have teamed with to help building a successful quality controlling program.

2,Our UV LED Bulb are sold to reseller professionals in over 50 countries worldwide for years.
3,All of our UV LED Bulb  made fresh within one month of your order, and has a two year warranty.
4,UV  LED Bulb   in the China in accordance to strict industry regulations.
5,All of UV LED Bulb   are subject to continuous laboratory quality testing.

6,We offer top quality light fixtures for prices well below the market standard.



Quality Control:
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification
 fixtures modern are produced through standard procedures conducted by trained staffs.
100% of the led light fixtures will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each led Cabinet light should pass all these QC procedures before the packing.



Trade Terms:
1. Payment term: T/T, L/C ,Western Union,Paypal
2. Lead time : normally in 5~10 days after confirmation .
3. Sample policy : Samples are always availble for each model,though it will be charged.
4. Shipping port: Changsha , China


Delivery detail:
Carrier is available by express,or sea shippiung or ordinary air cargo,



Our services:
1. we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Quality is guaranteed by professional team of R&D and QC.



About Us

The Leader of UV LED in China, Greenergy Lighting in LED for yeears, covers around 1000 square meters in Changsha China. We focus on providing environment-friendly but energy saving LED solutions to our people.UV LED  is our specialty.
