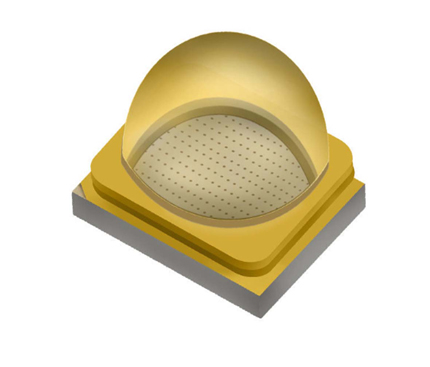

Greenergy 2019 New 50mW Output 6868 SMD 308nm UV LED For Machine Phototherapy Equipment - Greenergy lighting Co.,Limited
Published on by Nail Wang, Employee at Greenergy Lighting Co.ltd -- thespecialist of UV LED for Greenergy Lighting Co.ltd -Specialist of UV LED, Sterilizer UV Curing
- Built-in lens provides light focus, reduces assembly cost and parts count
- Narrow spectrum enables elimination of filters
- Relatively low system cost
- Superior irradiance (mW/nm/cm²)
- Environment-isolated package
- Flood radiation pattern with a viewing angle of 60°
- Maximum drive current of 350 mA in continuous mode
- Light output available in bins from 1 mW to 100 mW
- Typical L50 of 9000 hours at 350 mA
- Hermetic, through hole package
- RoHS-compliant
Technical Parameters
Specification of Greenergy 2019 New 50mW Output 6868 SMD 308nm UV LED For Machine Phototherapy Equipment
Place of Origin: | China |
Brand Name: | LVL |
Model Number: | GL308-6868G |
Certification: | ROSH |
1-1 Electro-Optical characteristics at 350mA
Parameter | Symbol | Value | Unit |
Peak wavelength | p | 310 | nm |
Optical Power | Ø | 40-50 | mW |
Forward Voltage | VF | 5-8 | V |
Spectrum Half Width | Δλ | 10 | nm |
view Angle | 2©1/2 | 120 | deg. |
Thermal resistance | R0J-s | 0.1 | ºC /W |
1-2 Absolute Maximum Ratings
Parameter | Symbol | Value | Unit |
Forward Current, DC | IF | 350 | mA |
Power Consumption | pW | 2100 | mW |
Operating Temperature | Topr | -30 ~ +50 | ºC |
Storage Temperature | Tstg | -40 ~ +130 | ºC |
Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. eis the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. R J-sis the thermal resistance between chip junction to package bottom
Our factry
Why you choose Greenergy
1,Partners in the Workplace,A list of outstanding organizations we have teamed with to help building a successful quality controlling program.
2,Our UV LED Bulb are sold to reseller professionals in over 50 countries worldwide for years.
3,All of our UV LED Bulb made fresh within one month of your order, and has a two year warranty.
4,UV LED Bulb in the China in accordance to strict industry regulations.
5,All of UV LED Bulb are subject to continuous laboratory quality testing.
6,We offer top quality light fixtures for prices well below the market standard.
Quality Control:
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification
fixtures modern are produced through standard procedures conducted by trained staffs.
100% of the led light fixtures will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each led Cabinet light should pass all these QC procedures before the packing.
Trade Terms:
1. Payment term: T/T, L/C ,Western Union,Paypal
2. Lead time : normally in 5~10 days after confirmation .
3. Sample policy : Samples are always availble for each model,though it will be charged.
4. Shipping port: Changsha , China
Delivery detail:
Carrier is available by express,or sea shippiung or ordinary air cargo,
Our services:
1. we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Quality is guaranteed by professional team of R&D and QC.
About Us
The Leader of UV LED in China, Greenergy Lighting in LED for yeears, covers around 1000 square meters in Changsha China. We focus on providing environment-friendly but energy saving LED solutions to our people.UV LED is our specialty.
