LEVEL GAUGE

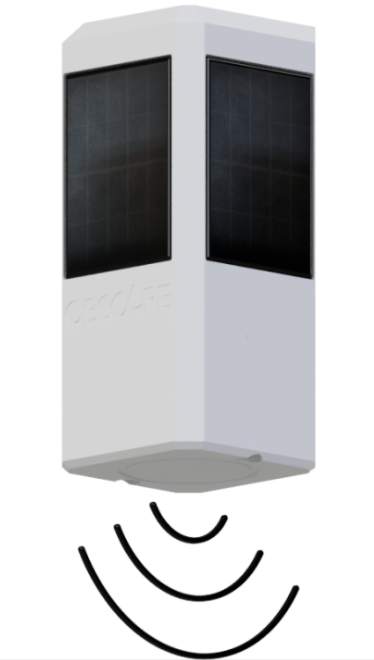

Obscape’s Level Gauge delivers real-time water level measurements which give you the capability to monitor natural or man-made water systems.

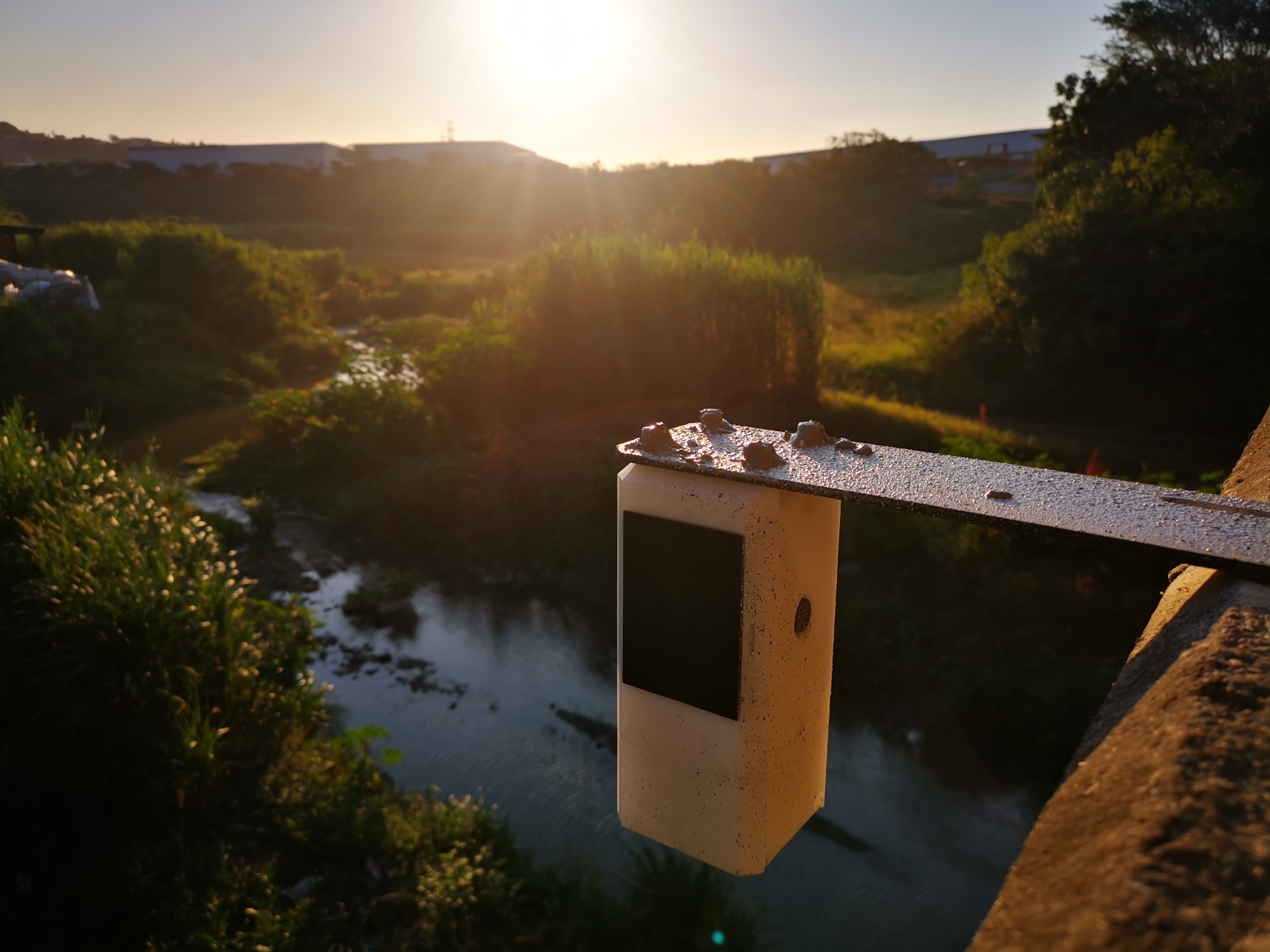

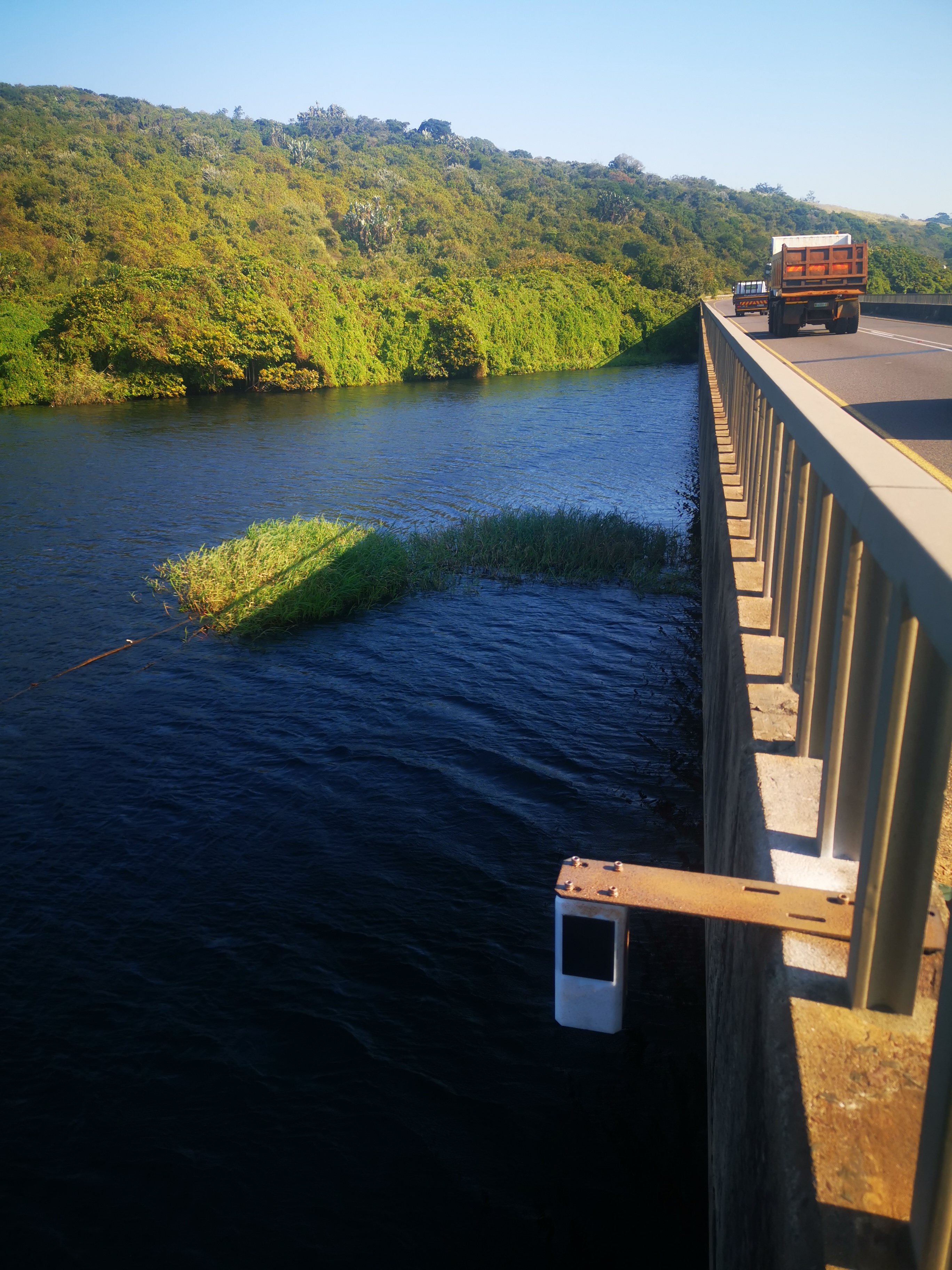

It is mounted above the water surface, which avoids costly and labour-intensive underwater operations. the Level Gauge comes with a license for the Obscape Data Portal. The data collected by your Level Gauge, as well as the data from any other Obscape device you own, are collected into the Data Portal. The Data Portal offers various options for viewing, managing and downloading your water level data, including the generation of PDF reports
KEY FEATURES
Integrated LOGGER - Real Time Settings from Portal
Integrated Telemetry – your data is transmitted in real-time using a 3G GSM connection
•
Integrated Power - Power is supplied through built-in solar panels, making it completely wireless which makes the Level Gauge ideal for monitoring remote areas
•
Integrated Sensor - The instrument measures the distance to the water surface using an industry-standard radar sensor utilising a:
HIGHLY ACCURATE RADAR WATER LEVEL MONITORING SYSTEM – which includes:
•Radar Based Sensor 60 GHz
•Range 20 meters
•High Accuracy 2mm
SD Logging
•Over the Air Firmware Updates
•Open API & POST Options
•Cellular (3G, 2G) or SATCOM
•Robust Acetal Housing
•Single Li-Ion 18650 Battery
•Multiple Mounting Options
•Internal Accelerometer
•Internal Barometer
APPLICATION AREAS
•
•CULVERTS
•
•DAMS & LAKES
•
•RIVERS
•
•HARBOURS
CUSTOMISATION CAPABILITY:
•EXTERAL 3rd PARTY RADAR
•DTM UPLOAD
•CATCHMENT DELINIATION
•ONLINE VOLUME CALCULATIONS
•DOWNLOADABLE REPORTS
•ALARM TRIGGERS
•CUSTOM FIRMWARE
•CUSTOM ONLINE STATISTICS
•Optional Camouflage Pack
