SIDINOX : prefabricated lift station
Published on by Valerie Joguet for SIDE INDUSTRIE

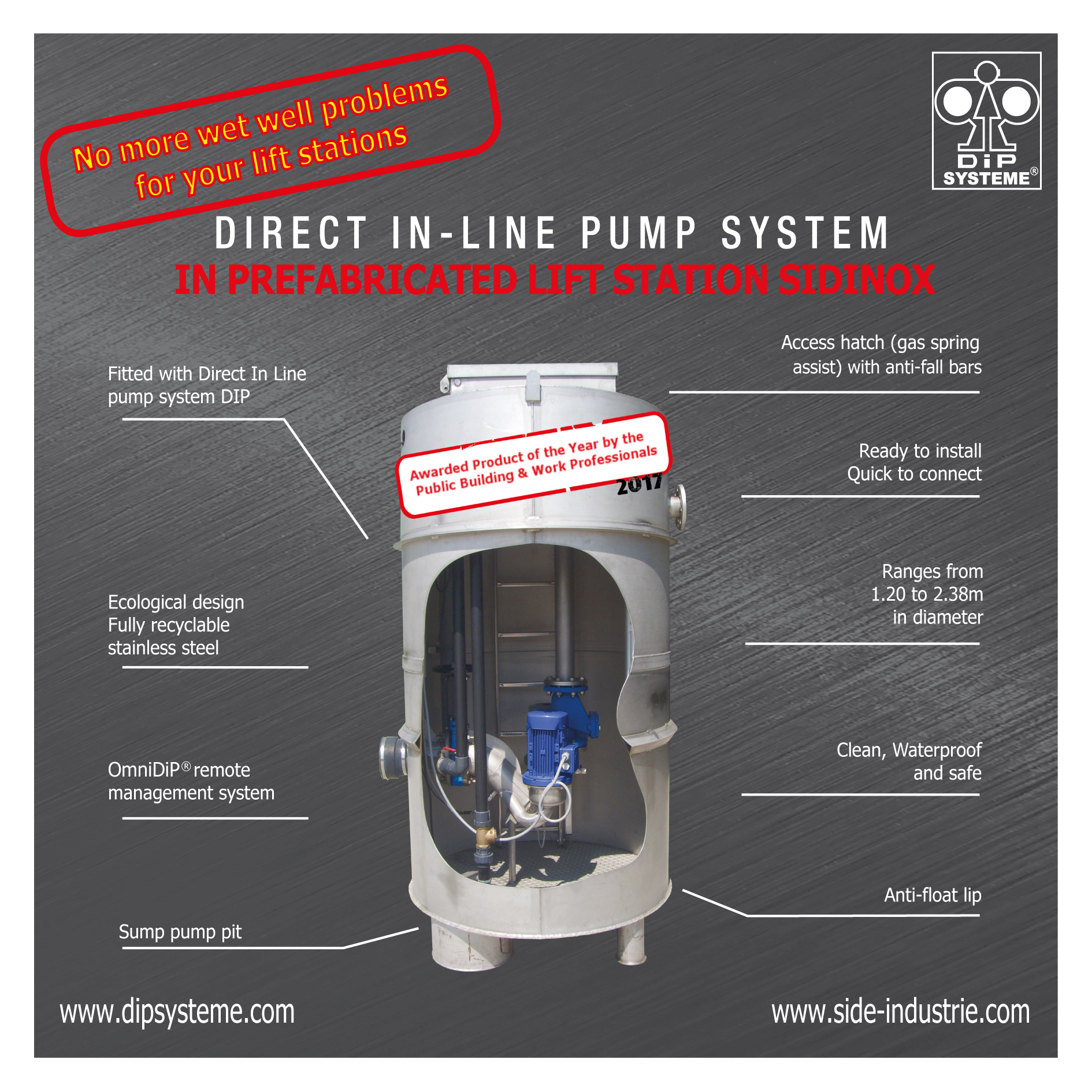

SIDINOX, a new, READY TO INSTALL lift station concept, made from stainless steel with a 25 year warranty against corrosion and leakage.
-FULLY ECO-DESIGNED
- FULLY RECYCLABLE, NON-OIL BASED MATERIALS
- ECONOMICAL, ROBUST, INNOVATIVE AND SUSTAINABLE
- Delivered READY TO INSTALL and QUICK TO CONNECT
- Beneath road surfaces or green spaces without need for valve vault
- CLEAN PUMPING (No odors, No gas, No screening of trash, No wet well,No periodic cleaning needed)
Basic and advanced modules enable you to set up the configuration that meets your own requirements. Sidinox ranges from 4 to 8 ft diameter stainless steel (AISI 304L) sealed units which house all the equipment required for its operation.
The SIDINOX can be fitted with DIP11-2HP up to DIP151-75HP duplex system.
They are pre-assembled with pipework, valves, access ladder and vent. Provided with a fully functional electrical cabinet including the OmniDIP remote system and a base for external installation by contractor.Information
- Location: Villemer, France
