Flat Welded Wedge Wire Screen

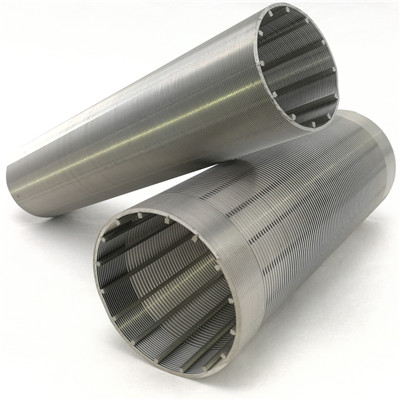

Wedge wire screen tube is made of welding V-shaped profile wire by Wrapping Cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. Support wire can be inside or outside according to flow direction ,wedge wire screen tube’s slot range from 0.2 to 5mm.

Wedge Wire Screen Tube Material

When select stainless steel grade that must endure corrosive environments, austenitic stainless steels are typically used. The most common types of stainless steel for welded wire screen are grades 304 304L 316 316L.

Wedge Wire Screen Tube Specifications

Slot size: 0.2 mm to 5 mm

Pipe diameter : 25 mm to 2500 mm

Pipe length : up to 12 m

For more details,please email us.

Wedge Wire Screen Tube End Types

Wedge wire screen tubes have different edge types to suit different applications, which includes,but not limit to the following

Common type

Ring type

Threaded type

Flange type

Wedge Wire Screen Tube Application

Power plants

Fish hatcheries &Desalination plants

Firefighting &Drainage channels

Potable water and Drinking water plants

Desalination plants

Water intake &water treatment

Separating,Filtering,Drying

Oil-water separation

sugar process &rotating pulping

water well production,

food and beverage,

oil and gas,

pulp and paper,

mineral and aggregate processing,

refining and petrochemical.

Benefits

V type wire, no plugged

No move part, simple to install

Low maintenance costs

Economical and applicable type, long life

Cost effective

High precision sizes

High mechanical strength, lightweight construction

Excellent filtration performance

Minimizes clogging

Maximum flow rates

Resistant to temperature variations

Wedge Wire Screen Tube Packing

Wedge wire screen tube is wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.
