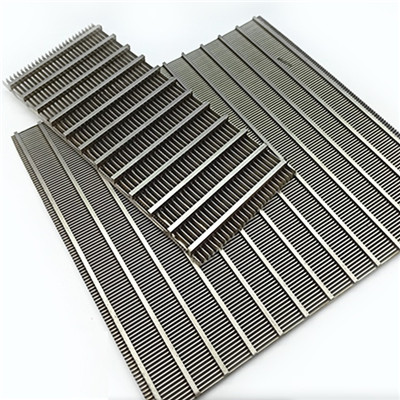

Wedge Wire Screen Panel

Flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. Support bar will be flat bar ,round bar ,triangle wire and so on,slot size range from 0.2mm to 3mm

Wedge Wire Screen Panel Product Specification

Material: AISI 304, 316 stainless steel

Slot opening: from 0.2 mm to 10mm.

Spacing between support rods: 20,25, 50, 75, 100, 300 mm (or on request).

Length: 500 mm to 3000 mm.

Width: 500 mm to 3000 mm.

For more details,please email us.

Wedge Wire Screen Panel Application

municipal areas and industries

interior wall cladding and facades

Used in modern buildings

Ceiling panels

Drainage system of showers

Vibrating screen decking

Coal mining

Waste water treatment

Mineral processing

Aggregate industry

Wedge Wire Screen Panel Benefits

Self-cleaning

Reduced maintenance time and costs

Simple and inexpensive to install

Vee type profile wires prevent plugging

Corrosion resistant stainless steel construction

Avoiding erosion damage and blockage to pipes and machinery

Wedge Wire Screen Panel Packing

Wedge wire screen is packed wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
