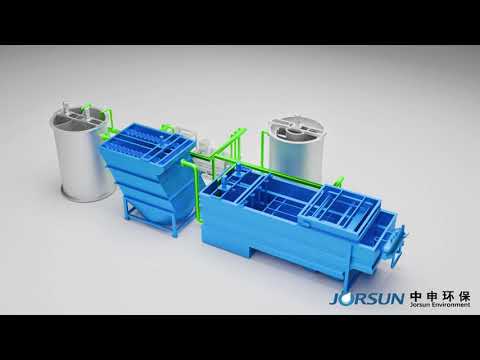

Lamella Clarifier + Dissolved Air Flotation (DAF) – Compact, Efficient, and Reliable Wastewater Treatment
How It Works (Process Flow)
1 | Coagulation & Flocculation (Mixing Tank) – Raw water is dosed with PAC/PAM for effective particle aggregation.
2 | Dissolved Air Flotation (DAF Unit) – Fine microbubbles attach to flocs, causing suspended solids and oil to float and be skimmed off.
3 | Lamella Clarifier – Inclined plates enlarge settling area, enabling rapid sedimentation in a compact footprint.
4 | Sludge Thickening Tank – Concentrates sludge before dewatering.
5 | Sludge Dewatering (Screw Press) – Produces drier sludge for easier handling and disposal.
6 | Automatic Chemical Dosing System (PAM/PAC) – Ensures stable treatment performance with precise chemical control.
