Gravity belt thickener

Published on March 8, 2019 11:21 by Sinan Adnan, Sales Manager at DEWACO for DEWACO

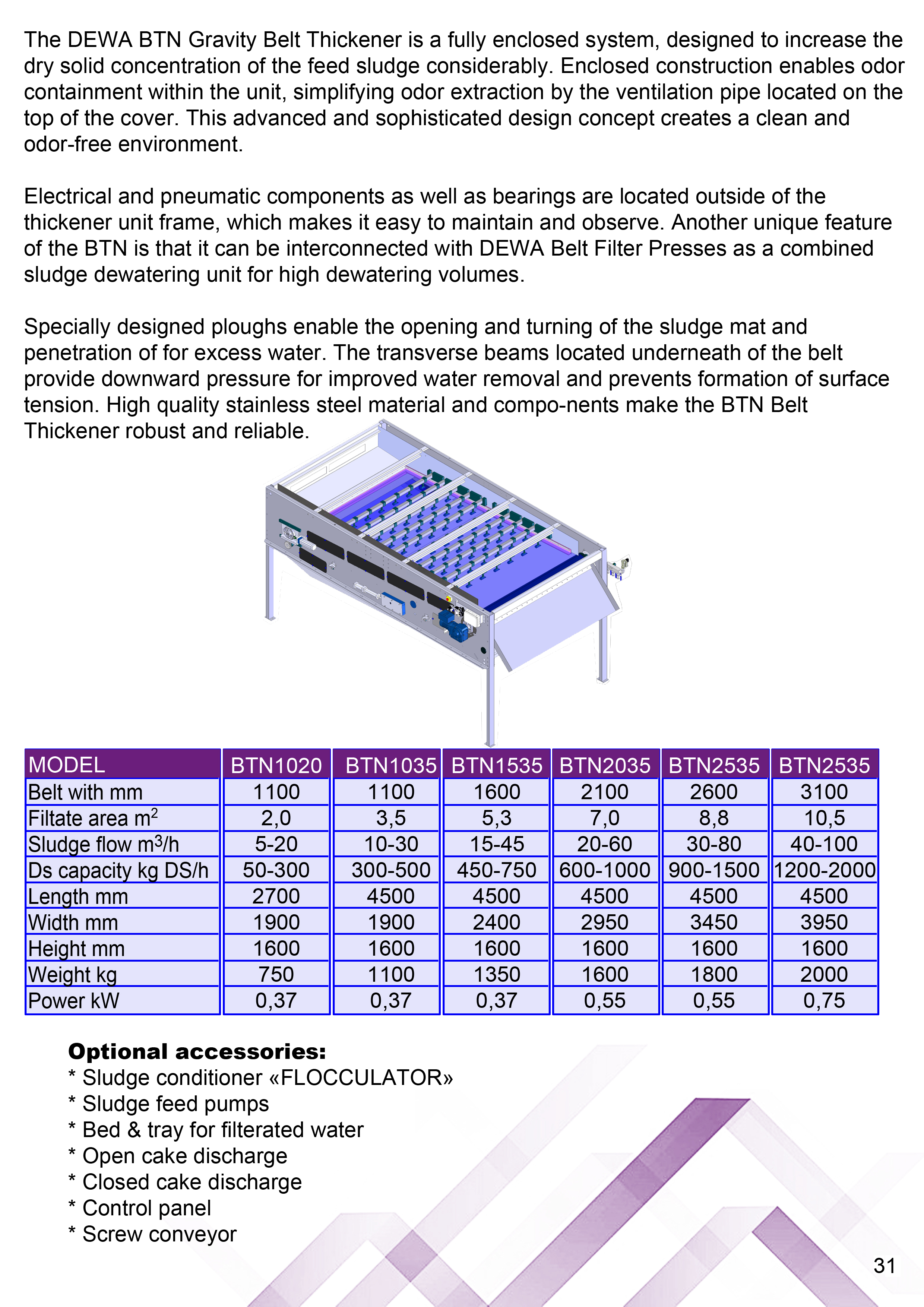

The DEWA BTN Gravity Belt Thickener is a fully enclosed system, designed to increase the dry solid concentration of the feed sludge considerably. Enclosed construction enables odor containment within the unit, simplifying odor extraction by the ventilation pipe located on the top of the cover. This advanced and sophisticated design concept creates a clean and odor-free environment.

Electrical and pneumatic components as well as bearings are located outside of the thickener unit frame, which makes it easy to maintain and observe. Another unique feature of the BTN is that it can be interconnected with DEWA Belt Filter Presses as a combined sludge dewatering unit for high dewatering volumes.

Specially designed ploughs enable the opening and turning of the sludge mat and penetration of for excess water. The transverse beams located underneath of the belt provide downward pressure for improved water removal and prevents formation of surface tension. High quality stainless steel material and compo-nents make the BTN Belt Thickener robust and reliable.

Attached link

http://econetgroup.fi/en/products-dewa/gravity-belt-thickener
