Polymer preparation unit
Published on by Sinan Adnan, Sales Manager at DEWACO for DEWACO

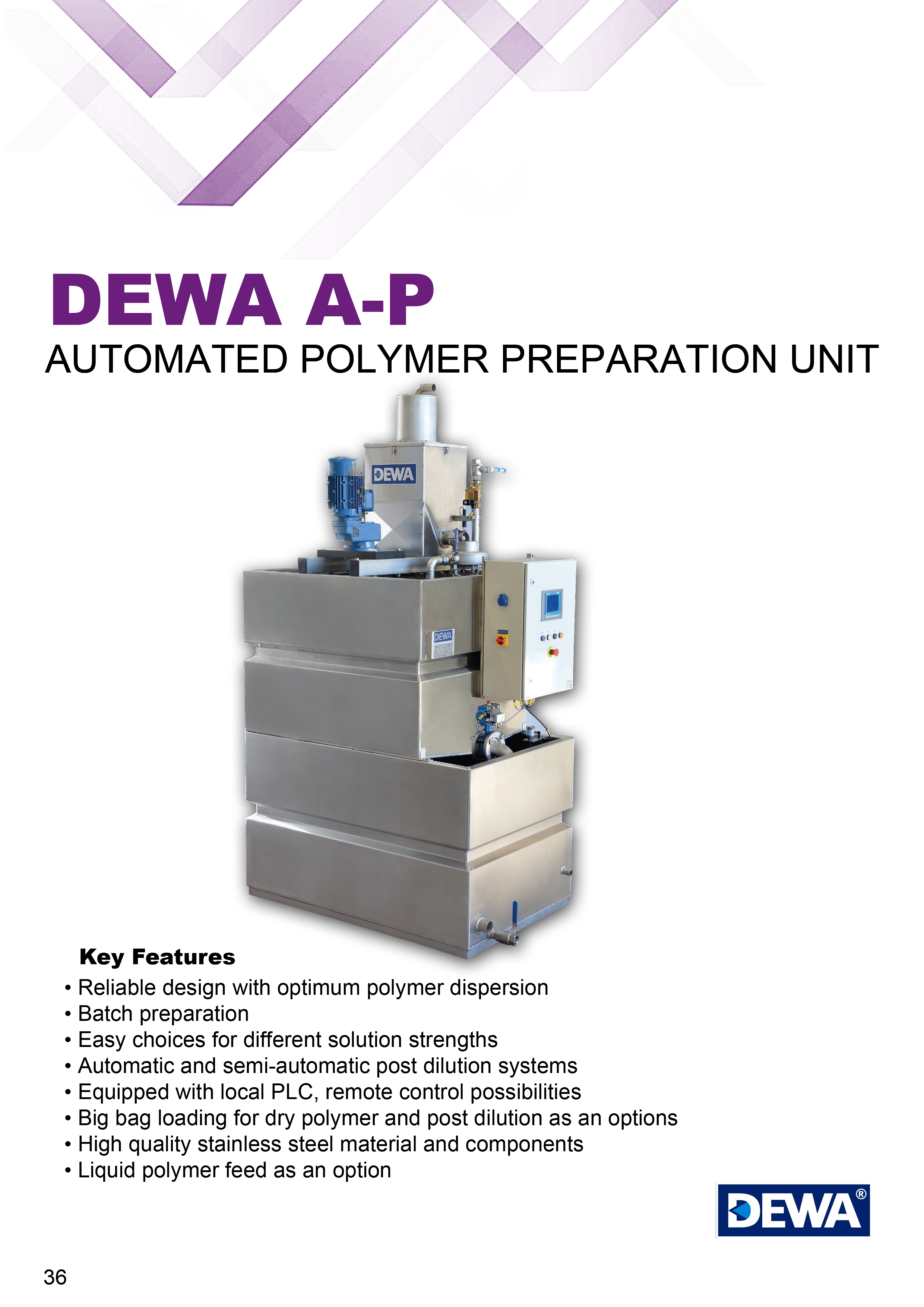

DEWA A-P automatic polymer preparation systems is an important part of effective and reliable wastewater treatment process. It is applicable for both municipal and industrial applications.
The batch preparation technology guarantees the best possible concentration formation. All of the DEWA polymer preparation A-P units are designed for one-hour aging time from initial mixing to discharge. Product quality and long lifetime are supported by using high quality stainless steel material and components. It is easy to combine with other DEWA products.

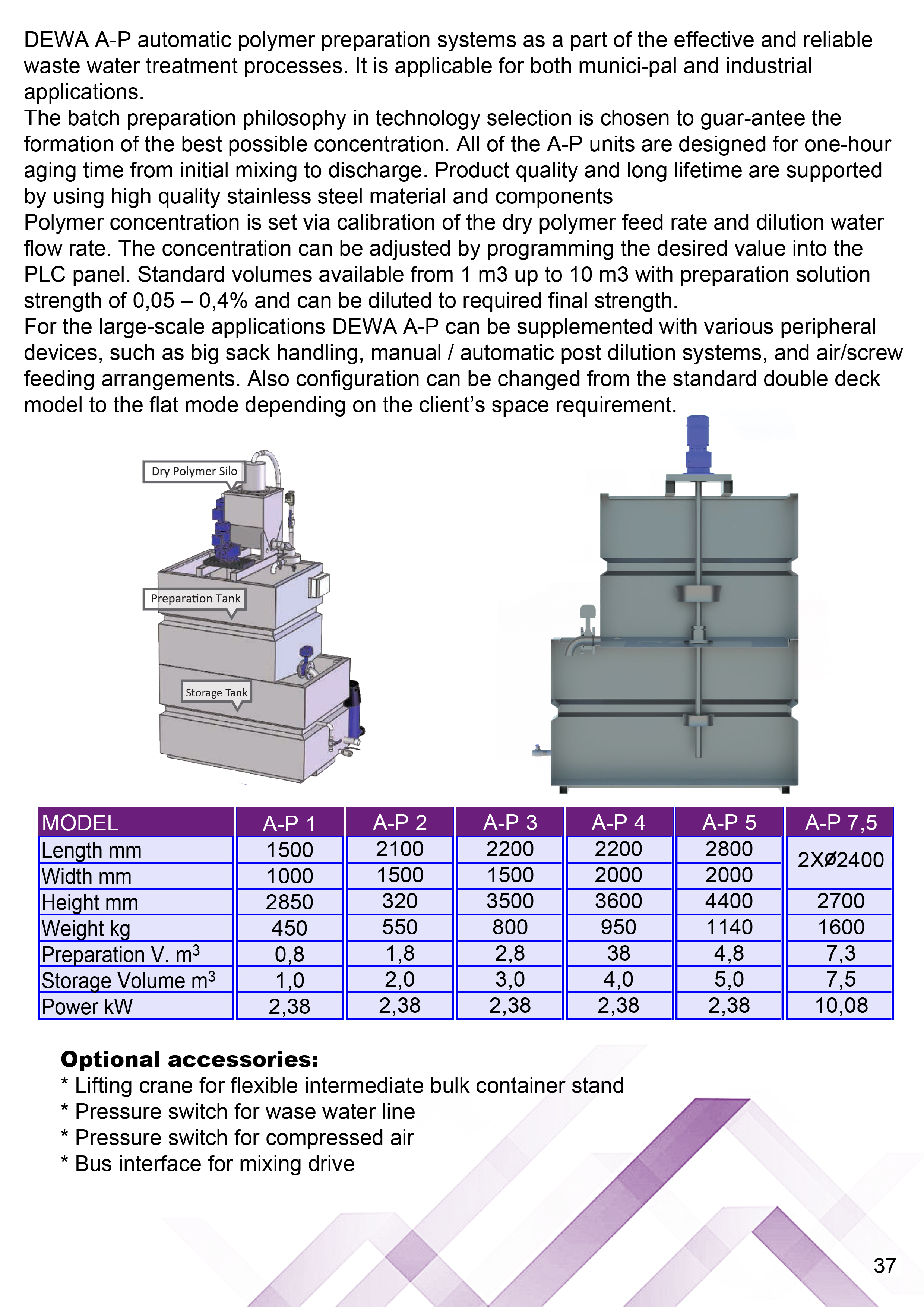

Polymer concentration is set via calibration of the dry polymer feed rate and dilution water flow rate. The concentration can be adjusted by programming the desired value into the PLC panel. Standard volumes available from 1 m3 up to 10 m3 with preparation solution strength of 0,05 – 0,4% and can be diluted to required final strength.
For the large-scale applications DEWA A-P can be supplemented with various peripheral devices, such as big sack handling, manual / automatic post dilution systems, and air/screw feeding arrangements. Also configuration can be changed from the standard double deck model to the flat mode depending on the client’s space requirement.
Attached link
http://econetgroup.fi/en/products-dewa/polymer-preparation-unitMedia
