Dissolved Air Flotation Machine , TSS removal DAF clarifier, Water Purifier , Water treatment equipment .
Published on by Bruce Xiong, CEO ,Founder for loren industry co.,ltd
LIRD Series Combined Dissolved Air Flotation Unit
Feature
-Customized budget and Multiple Design to meet diversified Demand
- Micro Bubble Size Below 30um,
-Some Applicant can use micro nano Generator Technology to get more fine bubble
-Low Pressure Operation and Lower Energy Consumption
-Over 99% Dissoved Air Resolution Ratio and Releasing Efficiency
- Easy Opeation and Simple Management with Small Footprint
-Strong Anti-Cogging Design Air System
-Stable Train-Plate Skimmer assue Scum Skimming Performance
-Can be Optional with UF, EC, Filler in The DAF Tank to get more COD or TSS Removal Ratio and Reduce the big load for the next process
-Can Combined with Built-in Reaction Tank with Agitator, Inclined Plates inside , Hopper on the bottom as well as other Change like Dissolved Air Ways to get idea Performance
Working Principle
The air Which will be insert into the Dissolved Air Tank Through Air Compressor or Site Air Source Mixes with The Fresh Water to Generator Micro Air Bubble Under 0.35Mpa pressure to form dissolved air water which will be Released Suddenly to Generate Micro bubble who will Taken the Coagulant Suspend Solid Adhered onside into the DAF Tank Surface to form Scum Layers , while the Clean water will remain under the layer to go in the clean water pipe or back to the re-flux air water pipeline . the scums on the surface will be skimmed by the Scraper to generate solid liquid Separation.

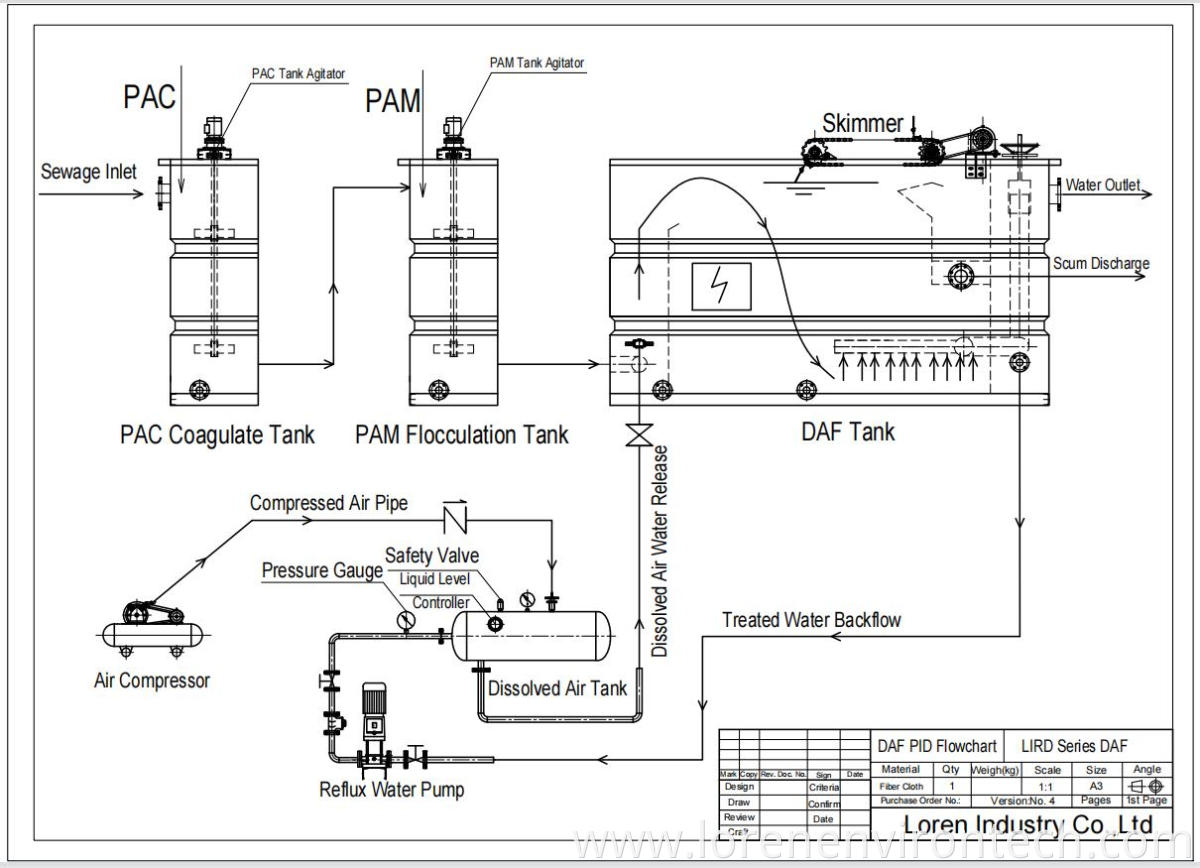

Flow Diagram
Main Technical Parameter
Model | Capacity （m3/h） | Air Volume（m3/h） | Pump (kw） | Compressor （kw） | Skimmer（kw） | Run Weight (kg) |
LIRD-1 | 0.5～1 | 0.3～0.5 | 0.55 | 0.55 | 0.18 | 1800 |
LIRD-2 | 1.5～2 | 0.6～1 | 0.75 | 0.55 | 0.18 | 2100 |
LIRD-3 | 2～3 | 1～1.5 | 0.75 | 0.75 | 0.37 | 3600 |
LIRD-5 | 3～5 | 1.5～2 | 1.1 | 0.75 | 0.37 | 4400 |
LIRD-10 | 5～10 | 2～3 | 1.5 | 0.75 | 0.37 | 9400 |
LIRD-15 | 11～15 | 3～5 | 2.2 | 0.75 | 0.37 | 12400 |
LIRD-20 | 16～20 | 5～7 | 2.2 | 0.75 | 0.37 | 15000 |
LIRD-25 | 21～25 | 6～8 | 3 | 0.75 | 0.37 | 18000 |
LIRD-30 | 26～30 | 8～10 | 3 | 0.75 | 0.37 | 21000 |
LIRD-40 | 31～40 | 10～15 | 5.5 | 0.75 | 0.37 | 27000 |
LIRD-50 | 41～50 | 15～18 | 7.5 | 1.5 | 0.37 | 33000 |
LIRD-60 | 51～60 | 18～20 | 7.5 | 1.5 | 0.55 | 40000 |
LIRD-70 | 61～70 | 20～25 | 11 | 1.5 | 0.55 | 45000 |
LIRD-80 | 71～80 | 25～30 | 11 | 1.5 | 0.55 | 52000 |
LIRD-100 | 91～100 | 30～35 | 15 | 2.2 | 0.55 | 68000 |
LIRD-120 | 101～120 | 35～45 | 15 | 2.2 | 0.55 | 76000 |
LIRD-150 | 121～150 | 45～55 | 15 | 2.2 | 0.75 | 85000 |
The Above Data Only For Reference , Please Subject To Our Final Confirmation
Application
1. Industr ial Waste Water
-Food & Beverage
-Dairy
-Paper Mill
-River Purifier
-Algae Removal
-Textile , Dyeing and Printing
-Tannery
-Cement
-Steel
-Plastic and Rubber
-Slaughter House
-Aquaculture
-Petroleum and Petro-chemistry
-Pharmacy
-Agriculture
-Other Combined Industria WW
2. Municipalities
Primary Treatment Before Biological; Biological Sludge Clarification; Biological Sludge Thickening; Tertiary Treatment.
3. Potable water
Surface Water Clarification; Desalinization Plants; Algae Removal
4. Seawater Desalination
