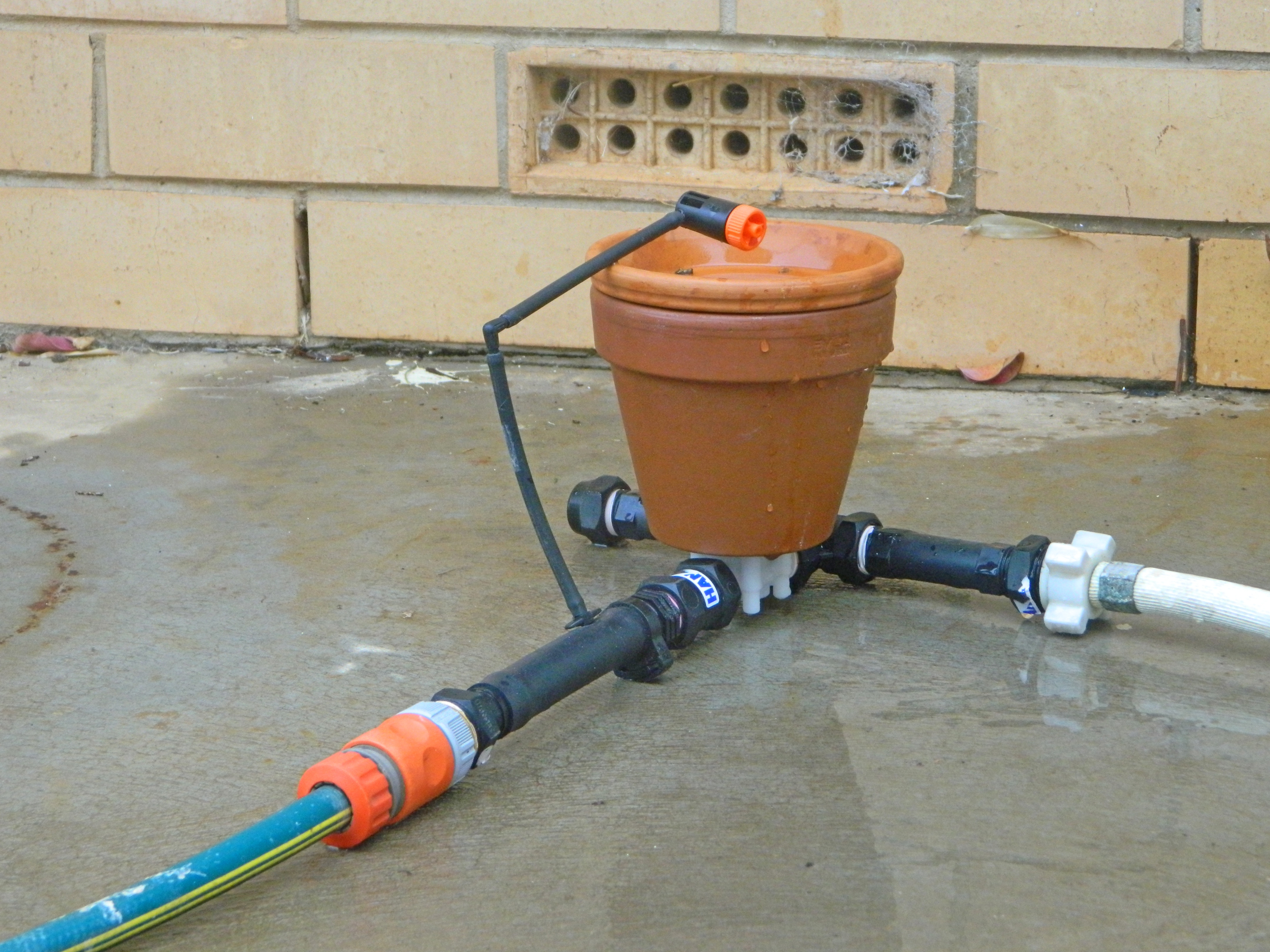

Terracotta Valve
Published on by Bernie Omodei, Owner at Measured Irrigation for Measured Irrigation
The Terracotta Valve is an unpowered irrigation valve suitable for automatic sprinkler irrigation or drip irrigation. The valve operates in the pressure range 10 kPa to 800 kPa. The Terracotta Valve does not require an irrigation controller. Each valve is self-controlled whereby variations in the irrigation frequency are automatically controlled by the on-site prevailing weather conditions (namely, evaporation and rainfall).
Terracotta is porous and so the water level in the pot falls as water evaporates from the outside surface of the pot. A float inside the pot floats on the water. When the water level reaches the low level, a magnet inside the float activates the valve so that the valve opens and the irrigation starts. During the irrigation event a control dripper drips water into the pot and the water level rises. When the water level reaches the high level, the magnet inside the float disengages from the valve so that the valve closes and the irrigation stops.
Key features of the Terracotta Valve:
- Completely automatic
- No electricity required (no batteries, no solar panels, no electronics, no computers, and no WiFi)
- No timer required
- Smart irrigation – the irrigation is controlled by the prevailing weather conditions
- Valve operates in the pressure range 10 kPa to 800 kPa
- Use for both gravity feed and pressurised irrigation
- Use with PC (pressure compensating) drippers and NPC (non pressure compensating) drippers
- Use for sprinkler irrigation, drip irrigation, or porous hose irrigation
- Adjust the water usage by adjusting the control dripper
- Variations in the irrigation frequency throughout the year are controlled by the prevailing net evaporation rate (evaporation minus rainfall)
- Responds appropriately when there is an unexpected heat wave
- When it rains, water enters the terracotta pot and delays the start of the next irrigation
- Uses less water without affecting the yield
- Water in the terracotta pot is protected from algae, mosquitoes and thirsty animals
- Simple, unpowered, and low tech, and therefore fewer things can go wrong
- Provided you have a continuous water supply, you can leave your irrigation application unattended for months on end
