CorTalk RMU1+INT1 Test Station Remote Monitoring – Cathodic Protection for Pipelines – MOBILTEX

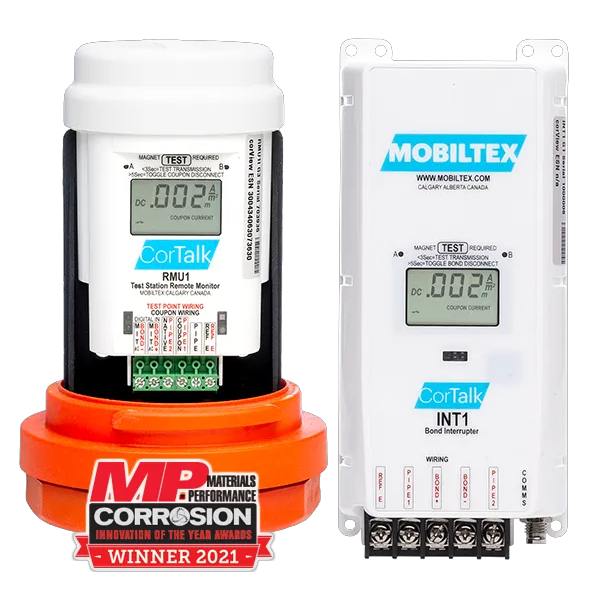

Designed to fit entirely under a standard CP test station, the RMU1+INT1 is truly a “hidden talent” delivering a small, powerful tool for remote monitoring of CP single or double coupons and structure bond applications that also provides permanent interruption functionality.

EASILY ADD GPS-SYNCHRONIZED INTERRUPTION

The CorTalk RMU1 collects and transmits CP performance data and GPS location as frequently as every few hours via satellite or cellular network. Multiple analog measurement channels on the RMU1 provide accurate results for all required AC and DC parameters. An easy to replace battery provides up to 10 years of reliable operation and data transmission and helps maximize lightning isolation.

The INT1 interrupter can be added at any time and is quickly connected to the RMU1 with a single cable. The INT1 automatically pairs with the RMU1 and can remain permanently installed in order to effectively take off-potential readings. Eliminate the need to install portable interrupters at test stations or to physically break bonds between pipelines, foreign rectifiers and structures when performing close interval survey (CIS) activities.

Combined with the CorView Cloud Platform, pipeline operators can implement and control a network of RMU1+INT1 devices to gain deep insight into the performance of the CP system, generate reports to instantly identify areas of concern, and optimize field survey activities.
