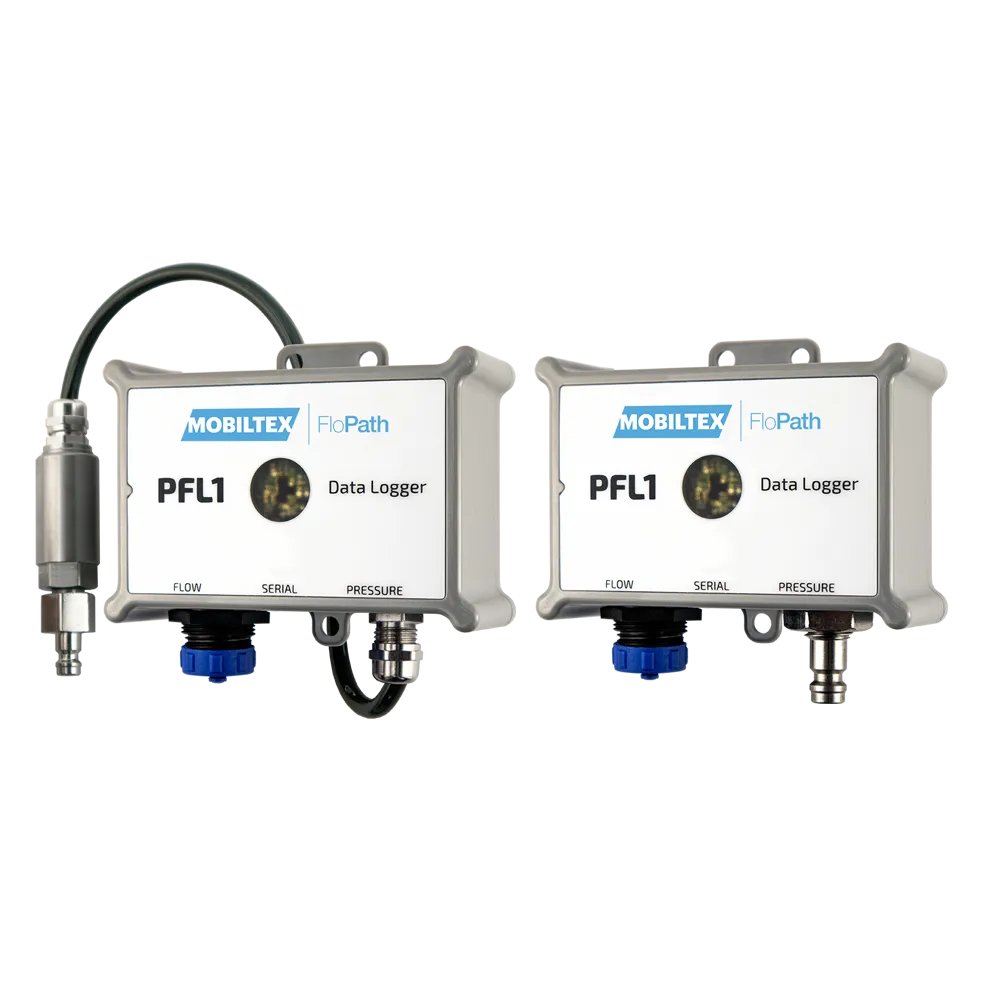

FloPath PFL1 Portable Water Pressure Flow Data Logger – MOBILTEX
Published on by Jonathan Saint, mktg@mobiltex.com for Mobiltex Data Ltd.
The completely updated PFL1 range of data loggers is based on the field-proven design of the PTRI/TRI model and utilize our patented data logging architecture that allows the user to monitor pressure/flow inputs in a multitude of configurations providing ultimate flexibility to meet specific application requirements.
The FloPath PFL1 stores data in non-volatile memory organized into data files. Each data file is an independent data logger with its own start/stop time, sample rate, and logging rate. More than one data file can record different types of data for the same input channel.
Different types of data include Average, Instantaneous, Minimum, Maximum, etc. The memory register size is designed to be ready to accommodate overflows associated with high pulse rates on Flow inputs.
Pressure measurement accuracy is optimized using multi-point calibration. Logged data can be re-calibrated before, during, or after the recording by recalibrating the pressure transducer to the logger.
Local communications via fast non-contact IrDA communications link (115,200 baud). The logger firmware can also be upgraded in the field via the IrDA communications link.
Attached link
https://www.mobiltex.com/solutions/water-pressure-monitoring/portable-water-pressure-flow-data-logger-flopath-pfl1Media
