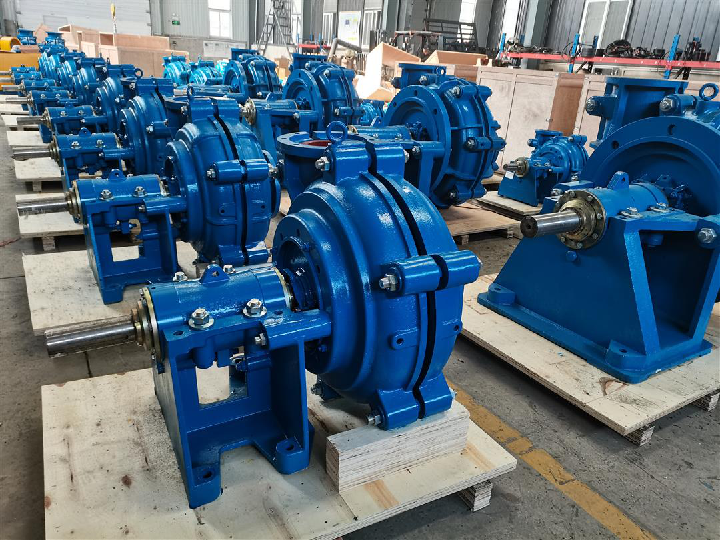

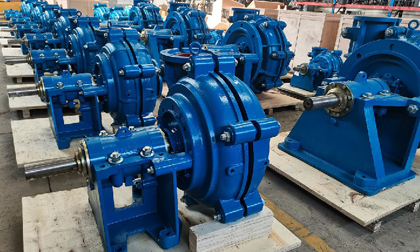

SH Series Heavy Duty Slurry Pumps

Horizontal Slurry Pumps; Metal Lined Slurry Pumps; Heavy Duty Slurry Pumps;

Model: SH/100D, SH/150E, SH/200F

Series: Metal Lined Slurry Pumps

General Introduction:

▶Our horizontal slurry pumps are designed for heavy duty applications such as mining, minerals processing, mill discharge, power plants, tailings and other industrial applications, for maximum abrasion, erosion and corrosion resistance.

▶The pumps are in a wide range of sizes, available with both high chrome and ruber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomer to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal and mechanical seal.

▶Our metal lined slurry pumps are designed for heavy duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.



Specifications:

Pump
Model

S×D
(inch)

Allowable
Max. Power (kw)

Material

Clear Water Performance

Impeller

Capacity  Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

No. of
Vanes

Vane Dia.
(mm)

Impeller

m3/h

l/s

SH/25B

1.5×1

15

Metal
(A05)

12.6-28.8

3.5-8

6-68

1200-3800

40

2-4

5

152

SH/40B

2×1.5

15

32.4-72

9-20

6-58

1200-3200

45

3.5-8

184

SH/50C

3×2

30

39.6-86.4

11-24

12-64

1300-2700

55

4-6

214

SH/75C

4×3

30

86.4-198

24-55

9-52

1000-2200

71

4-6

245

SH/75D

4×3

60

245

SH/100D

6×4

60

162-360

45-100

12-56

800-1550

65

5-8

365

SH/100E

6×4

120

365

SH/150E

8×6

120

360-828

100-230

10-61

500-1140

72

2-9

510

SH/150F

8×6

260

510

SH/150R

8×6

300

510

SH/200F

10×8

260

612-1368

170-380

11-61

400-850

71

4-10

686

SH/200ST

10×8

560

612-1368

170-380

11-61

400-850

71

4-10

686

SH/250F

12×10

260

936-1980

260-550

7-68

300-800

82

6

762

SH/250ST

12×10

560

936-1980

260-550

7-68

300-800

82

6

762

SH/300ST

14×12

560

1260-2772

350-770

13-63

300-600

77

3-10

965

SH/350TU

16×14

1200

1368-3060

380-850

11-63

250-550

79

4-10

1067



Applications:

Heavy duty slurry pumping applications, Mining and minerals processing, Mine refuse and tailings, Mill discharge, Cyclone feed, Sand and aggregates



Materials:

Description of Parts

Material

Material Code

Pump Body, Split-Casing

Grey Iron

G20/G21

Ductile Iron

D20/D21

Impeller, Volute,
Wear Liners, Expeller,
Expeller Ring,
Stuffing Box

27% High Chrome

A05

15/3 Chrome/Moly Iron

A07

Corrosion-resistant 35% Chrome

A33

28% High Chrome, Low Carbon

A49

Shaft

304 Stainless Steel

C21

316 Stainless Steel

C23

Shaft Sleeve

304 Stainless Steel

C21

316 Stainless Steel

C23

Aluminum Oxide Coating, White

J04

Chrome Oxide Coating, Black

J05



Driven Type:

DC(z): The pump and the engine is directlyconnetced by a coupling.

Belt-driven Types: The pump and the engine is connetced by pulleys and belts --- CV, CR(z), ZV(z).
