Fifth Stage Pumping Drinking Water Project

Published on by in Non Profit

Fifth Stage Pumping Drinking Water Project

We are living in a mountain area of Nepal and we have a big problem with water scarcity of drinking water. We are hence trying to lift the water with five stage pumping. The user population around 25000.

How we can save electricity and how can do continue supply the water? What is the problem we must face? Can any specialist help and make suggestions?

We will very happy, if anybody helps us.

Media

Taxonomy

6 Answers

  2. Dear Badri,

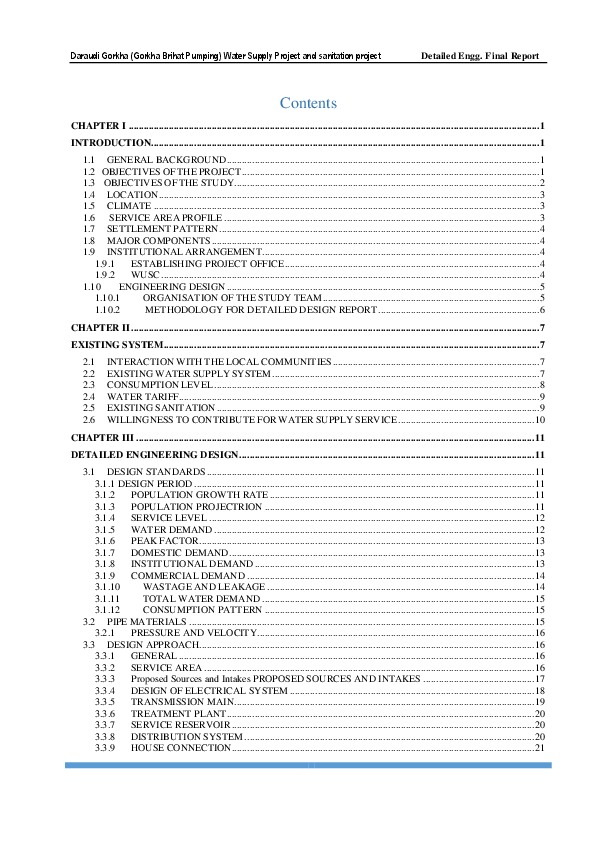

    I understand the existing situation is a mix of different more or less independent water supply schemes serving all those (up to) 25,000 people living scattered and in bazaars on a hill hundreds of meters above rivers and other potential sources. The report looks as if you like to replace everything by one pumping scheme or to merge all schemes and add water from a pumping scheme. Your request suggests that cost and reliability of electricity might be a obstacle for operating the system. The only alternatives seem to be solar power and rams.

    The suggested Water Rams have been tried on small scale in Nepal since long ago, but did not catch on. There must be reasons for that. There are issues with theft and hooliganism for such technologies, but the main issue is probably that water has first to come from high up and where in Nepal you will find large quantities of water (25000 people) high on the hill at the other side of the river?

    Solar powered pumps seem more feasible, but have in Nepal not been proven yet for longer periods and larger schemes. In a country where only 60-70% of water supply schemes is reasonably functional and large schemes have more problems than medium/small schemes, you need more guarantees that the owners can maintain and operate the schemes without too much problems and for a long time. I think you can only go for solar if you dont merge all the small schemes and keep them separate and "small".  The most relevant source of info for your Gorkha might be DOLIDAR's RWSSP-WN project (Pokhara office), which has built solar powered water supply schemes and should by now have enough experience to share best practices, dos and donts.

    Best wishes, Arend

    arendvanriessen@gmail.com

  3. Dear Badri,

    Having read your report it is clear you have significant terrain challenges. If some of the remoter communities could use more local water sources, the community based ClariWash self washing filtration system may be a solution for them. It needs no power supply or intervention to backwash. Whilst new technology, 6 filters have been in Uganda for over a year. I attach a write up incase of interest. I can supply support if required.

    WaterReach is a not for profit enterprise.

    Kind regards

    Nigel Heeler

    nigel.heeler@waterreach.co.uk












  4.  I have designed a fluid retention device which can be used for large holding tanks, flood defence, land retention, aqueducts.

     The system which we have designed is totally concrete free, can be installed on any terrain above ground, faster to install and requires minimal skill and machinery/plant.

     Benefits of using Neptune's products
     No Concrete required - Up to 40% cheaper than concrete
     Situated above ground for easy access
     Fast installation
     Low maintenance
     Minimal ground preparation
     Environmentally friendly 95% recyclable.
     We use recycled products where possible.
     Will last over 75 years
     Cladding can be installed
