Before proceeding with the design and construction of a prototype, could you spare some time to give me some feedback on the attached Proof of C...
Published on by Bernie Omodei, Owner at Measured Irrigation
Key Features
Unpowered.
Water supply pressure 2 kPa to 300 kPa (0.2 metres to 30 metres).
One inch inlet and outlet.
Maximum flow rate @ 20 kPa (2 metres) of 40 L/M.
Use for sprinkler irrigation or drip irrigation.
Use for gravity feed or pressurised irrigation.
Adjust the dripper (or sprinkler) discharge by adjusting the control dripper.
Adjust the interval between irrigation events by adjusting the length of the polyester skirt.
Responds automatically to on-site evaporation and rainfall.
Irrigate directly from a rainwater tank without using a pump.
Water in the container is protected from debris, algae, mosquitoes and thirsty animals.
Warm regards
Bernie
Media
3 Comments
-
Bernie, Now it is clear how the water comes in between the inner and outer containers. However, the drawing needs a lot of improvements and also it is necessary to review the operation principle:
1. looks like the inner container moves upward with the inlet and outlet pipes, valve ad drainage pipe. This cannot be possible with rigid pipes: maybe hoses will work?
2. For one cycle it is clear but how you restart next cycle?
1 Comment reply
-
The cycle restarts after sufficient water has evaporated from the polyester skirt and the inner container has fallen to the low level.
-
-

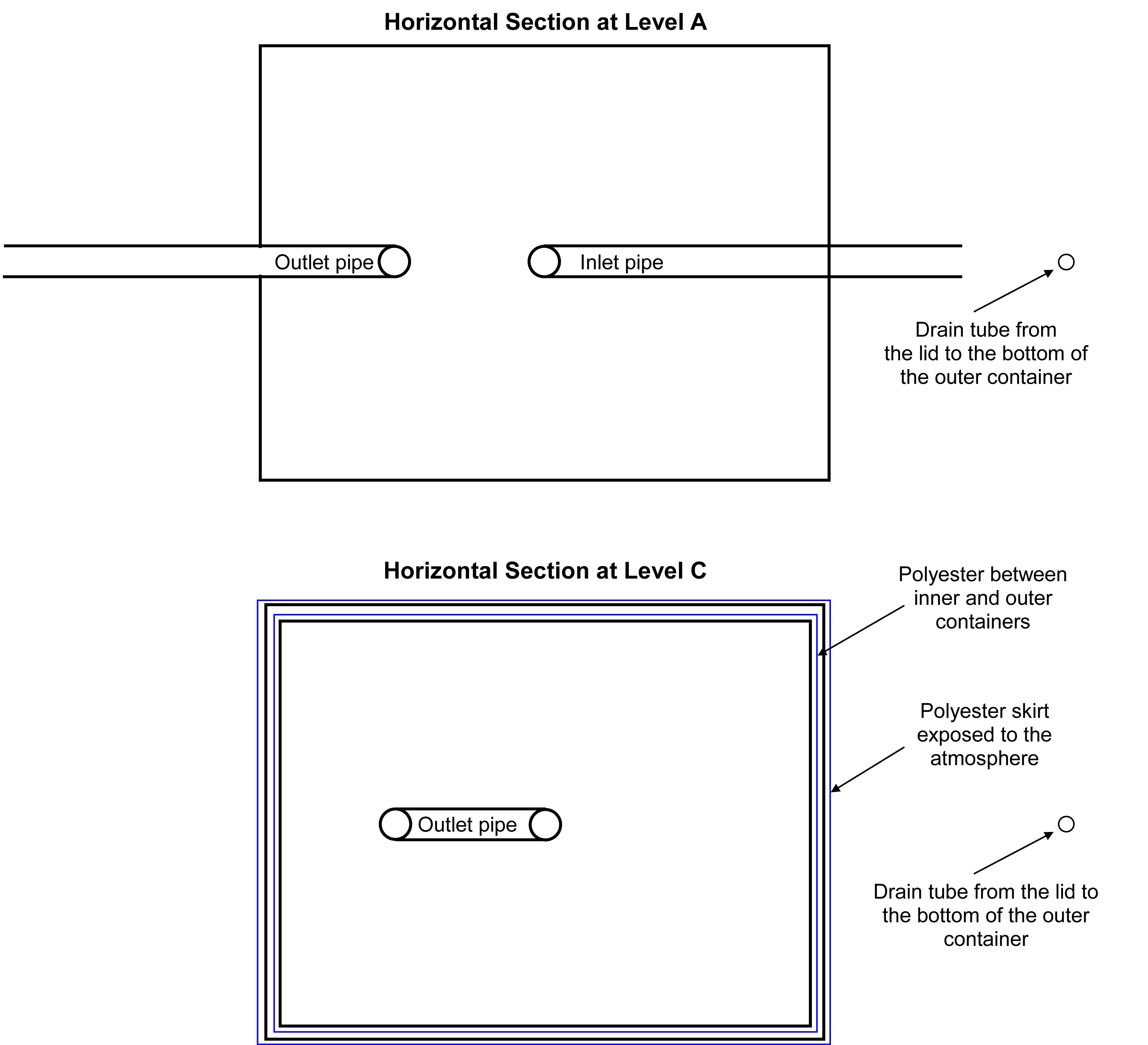

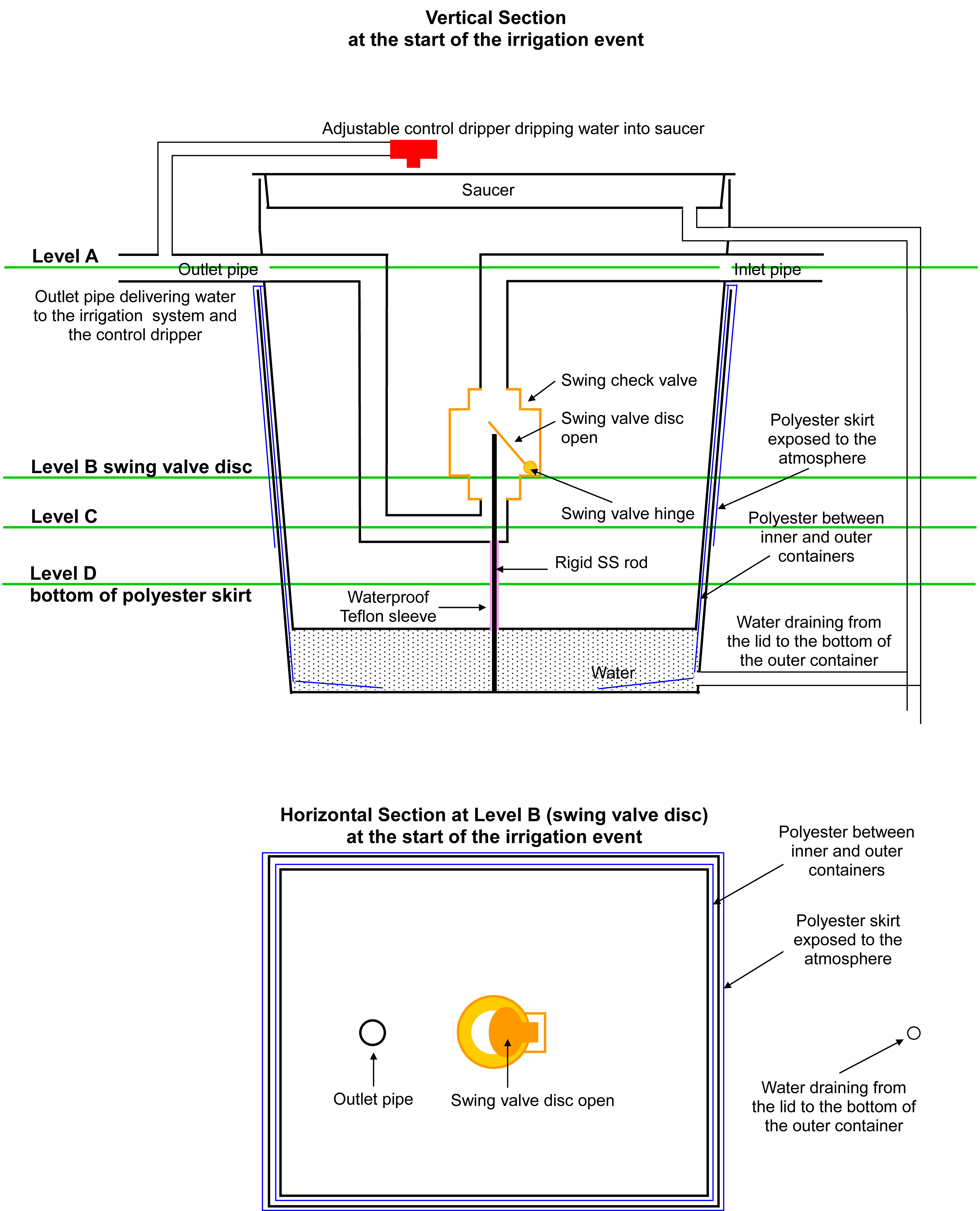

The discharge from the adjustable control dripper is delivered from the lid of the container to the bottom of the outer container via the drain tube on the RHS of the diagrams. I will now post two additional diagrams: 1. ELEVATION at the end of the irrigation event, and 2. ELEVATION at the start of the irrigation event.
-
Bernie, can you provide more details? For example, it is not clear how and from where the water arrives between the outer and inner containers.
